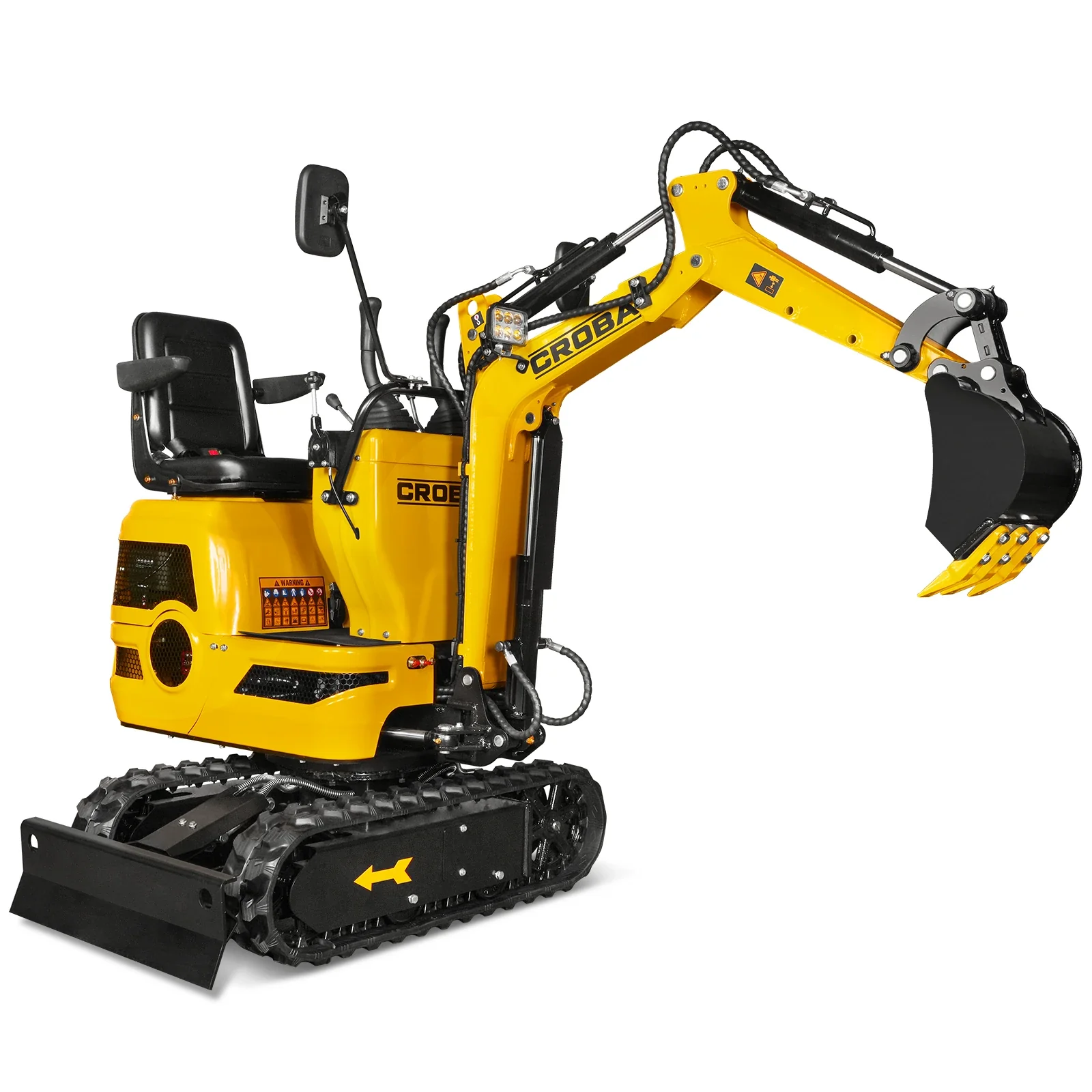

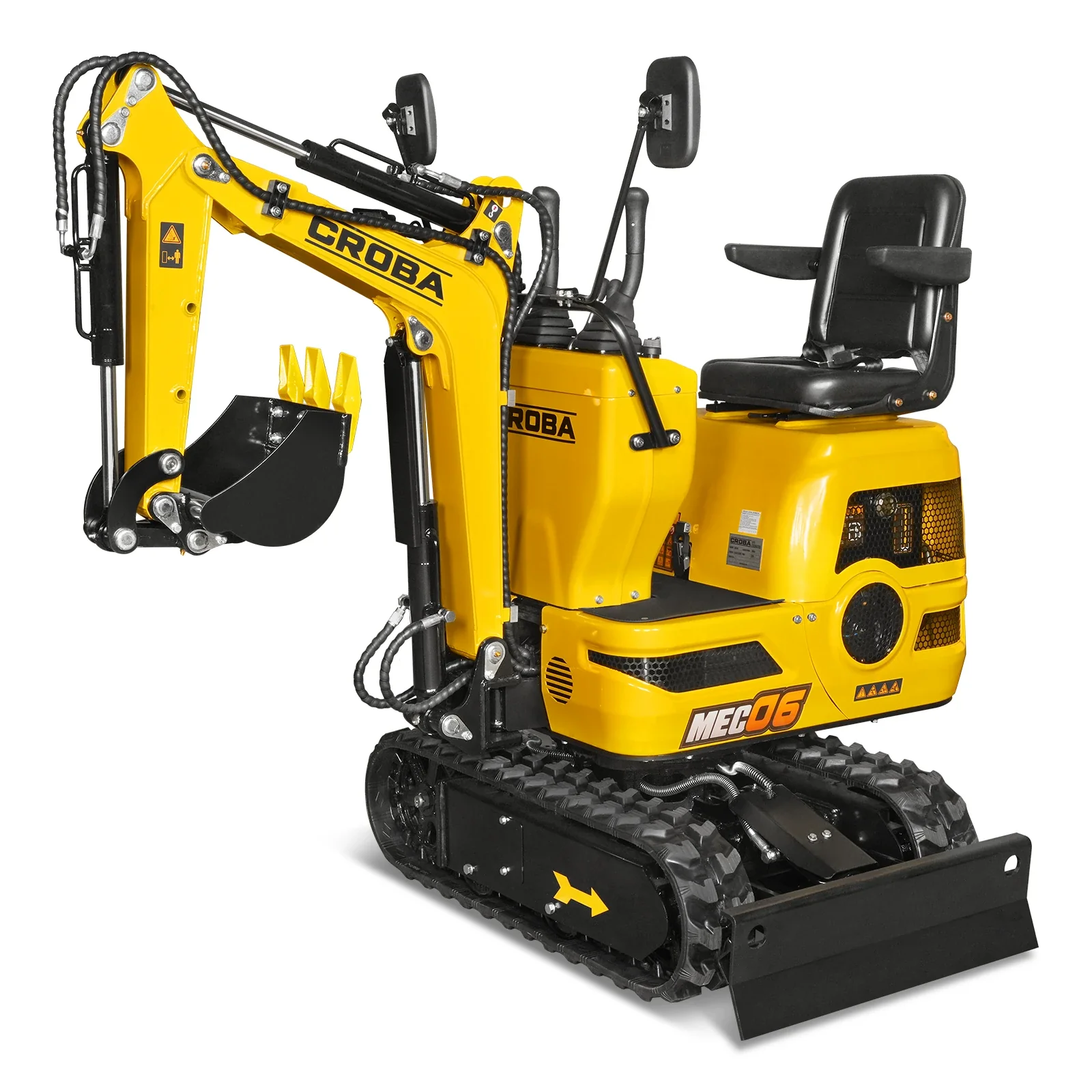

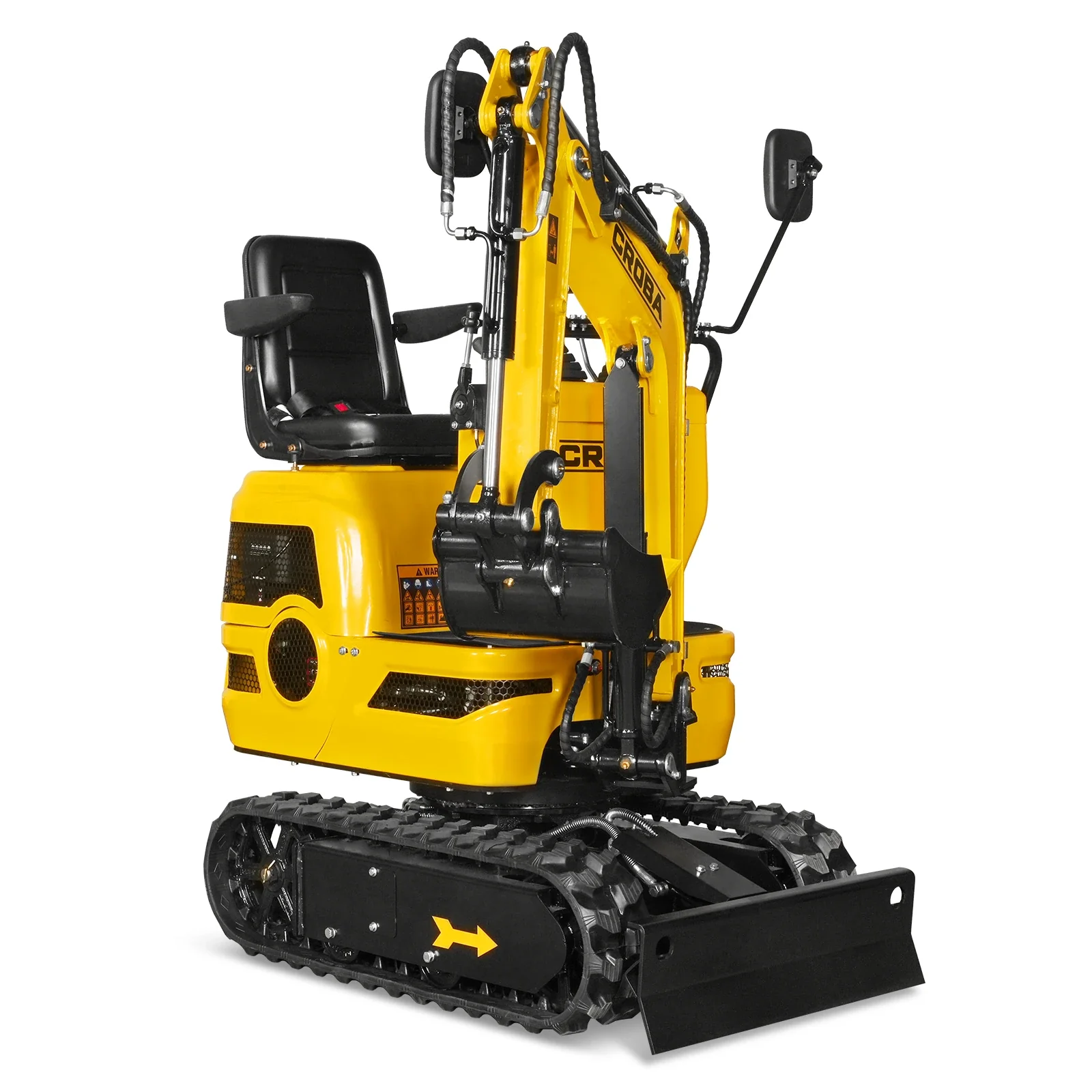

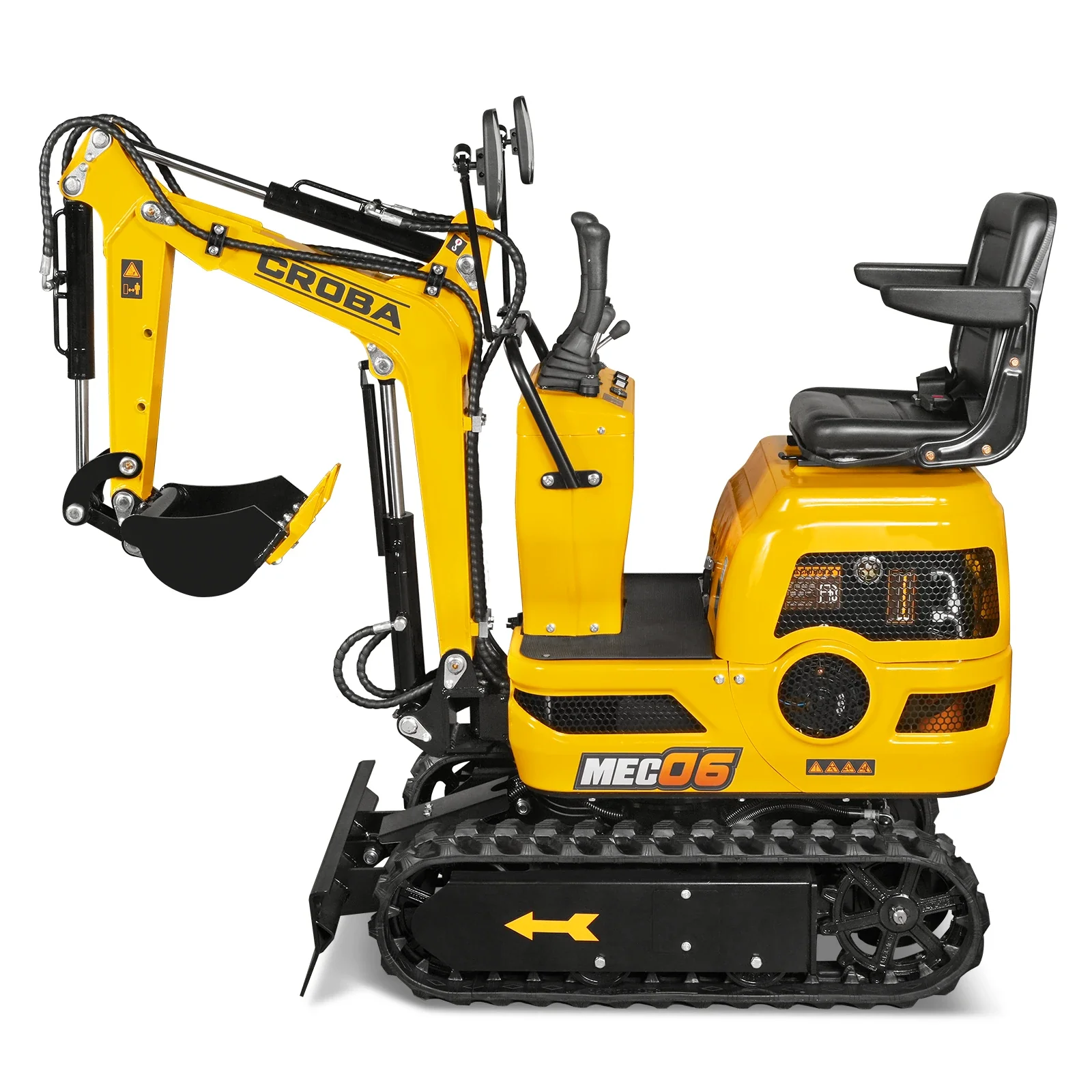

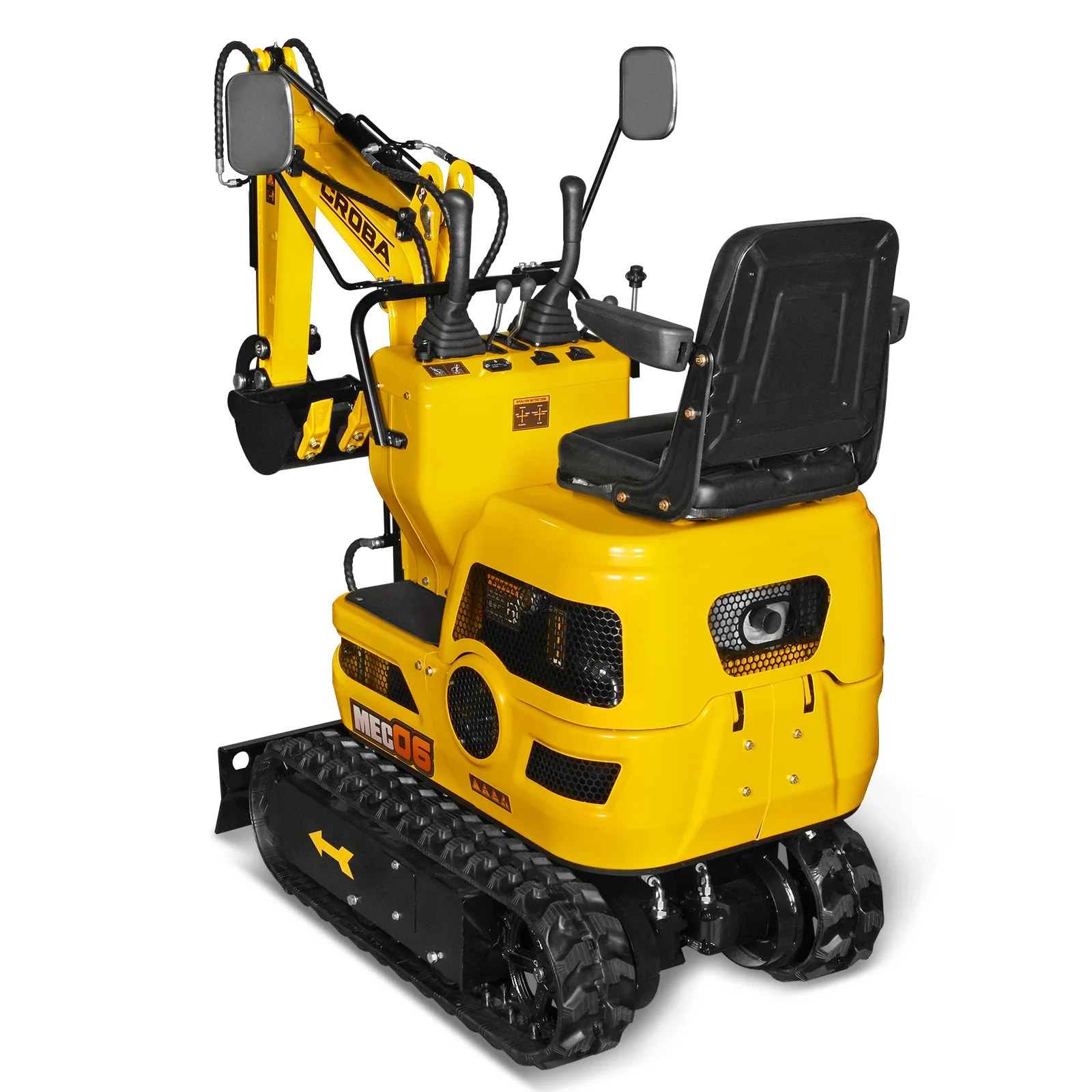

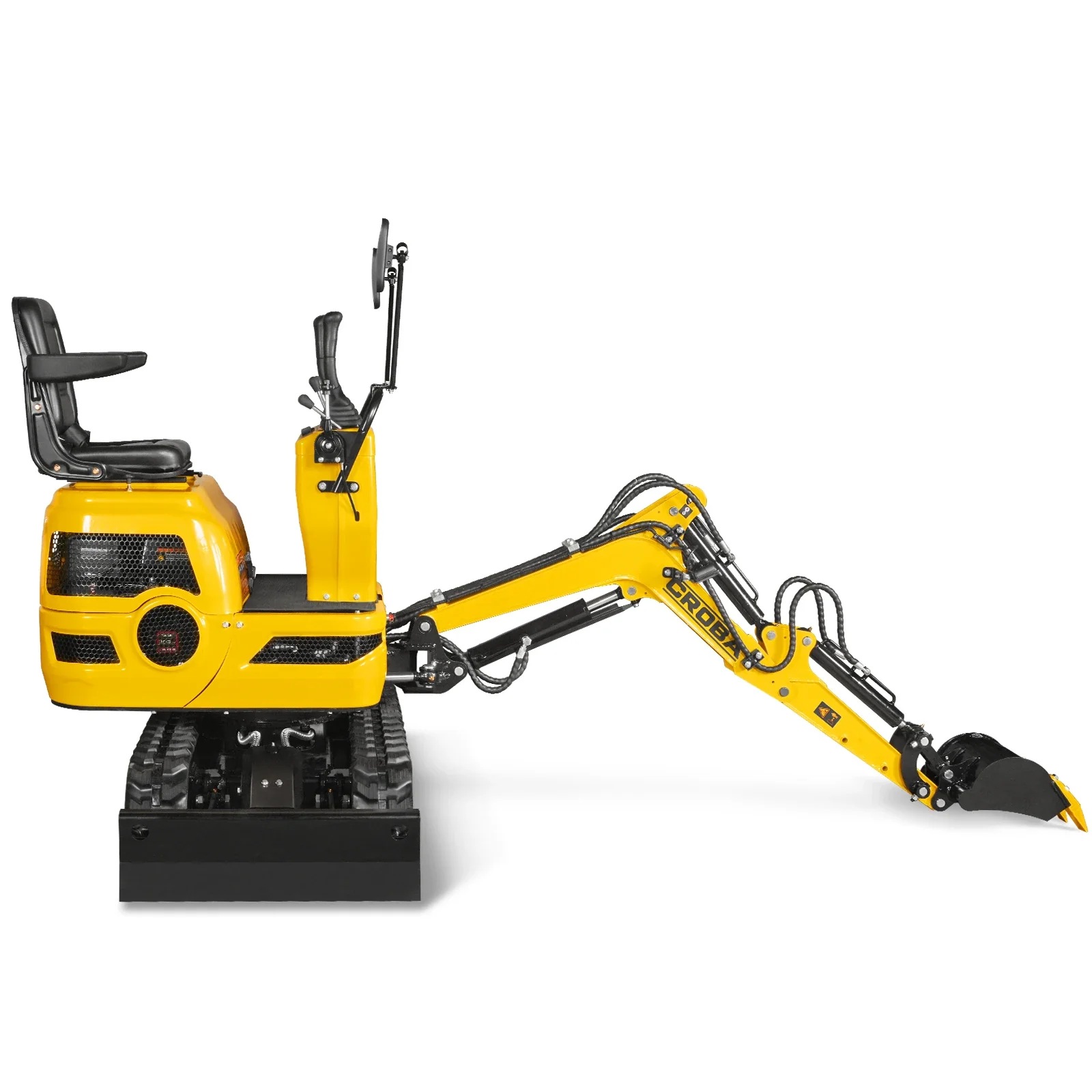

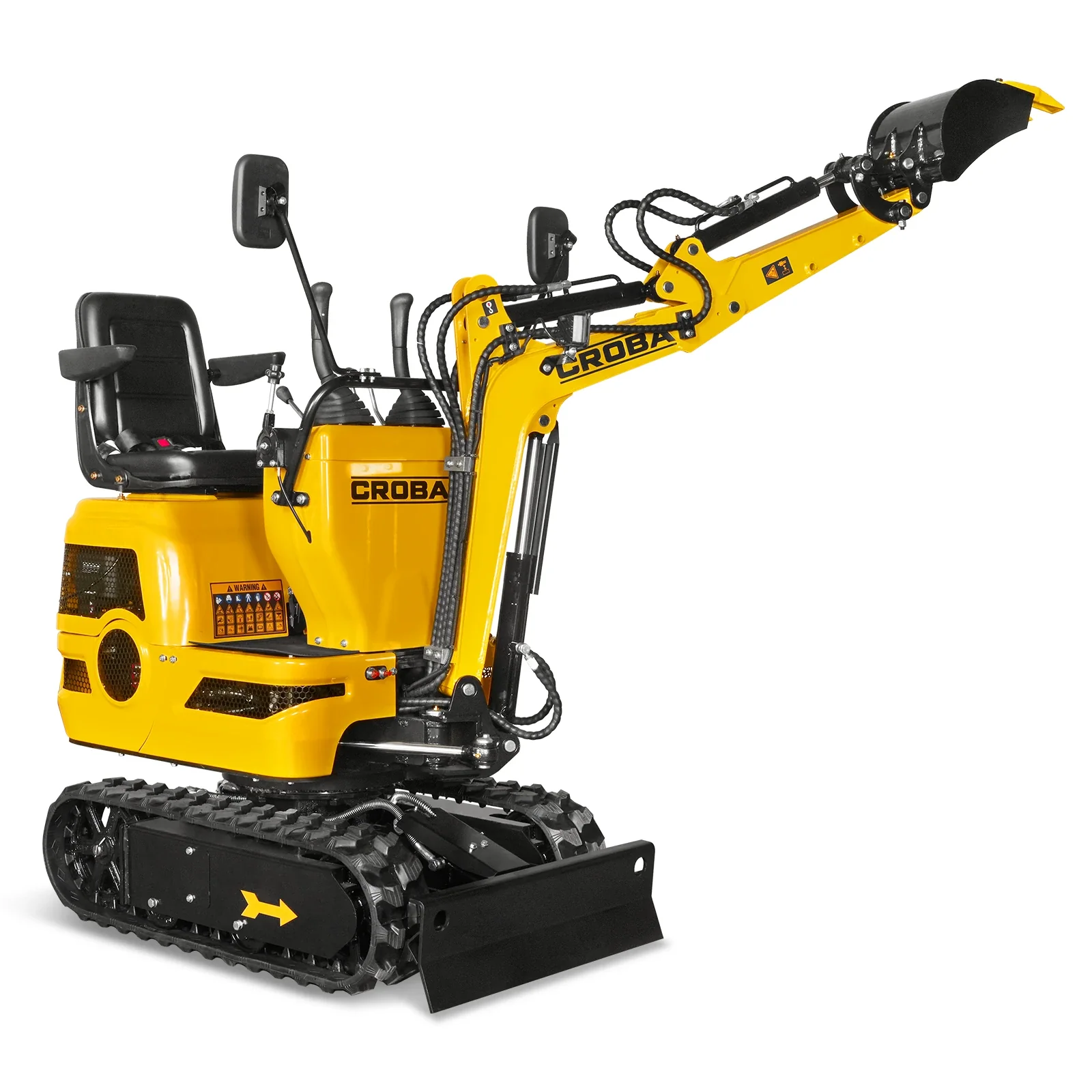

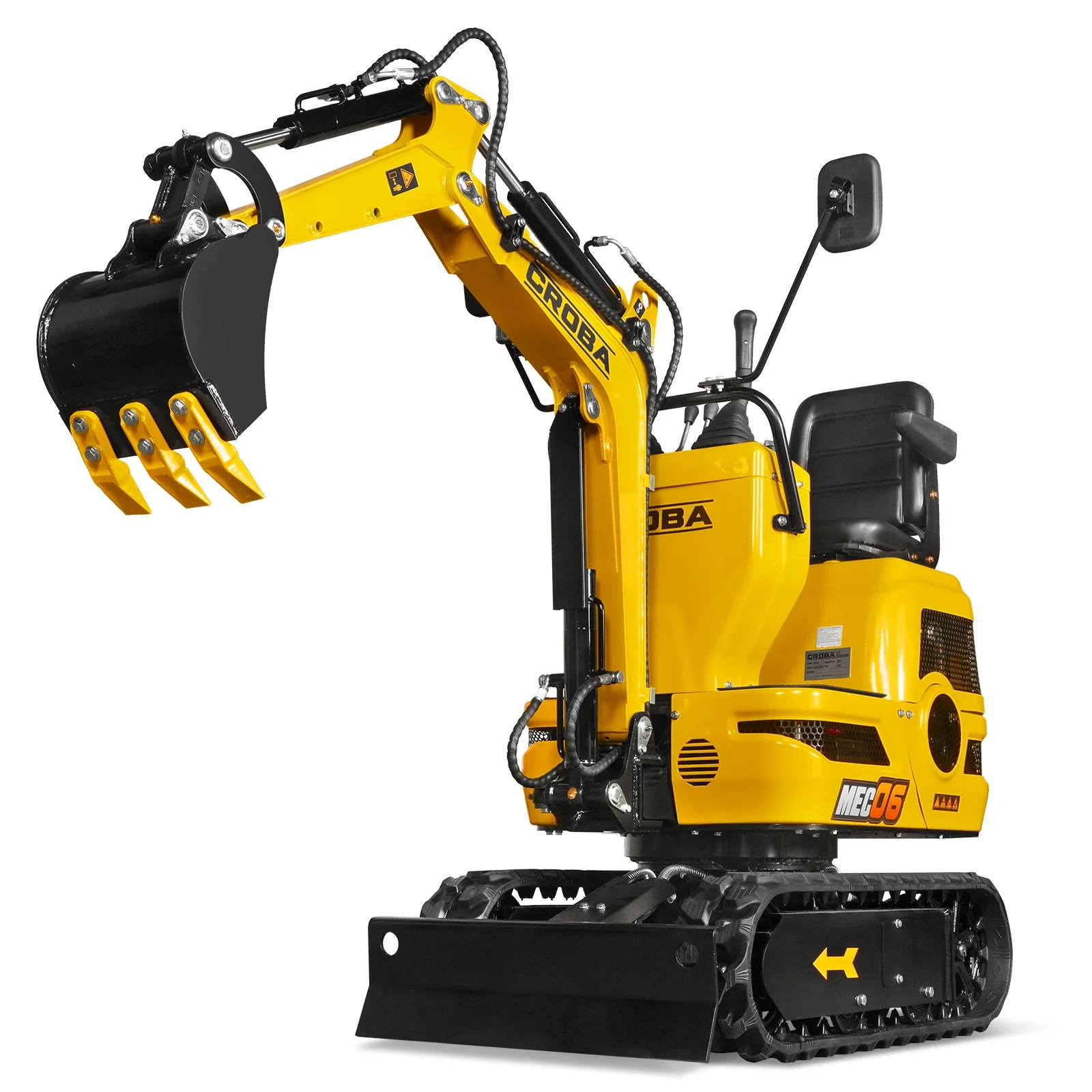

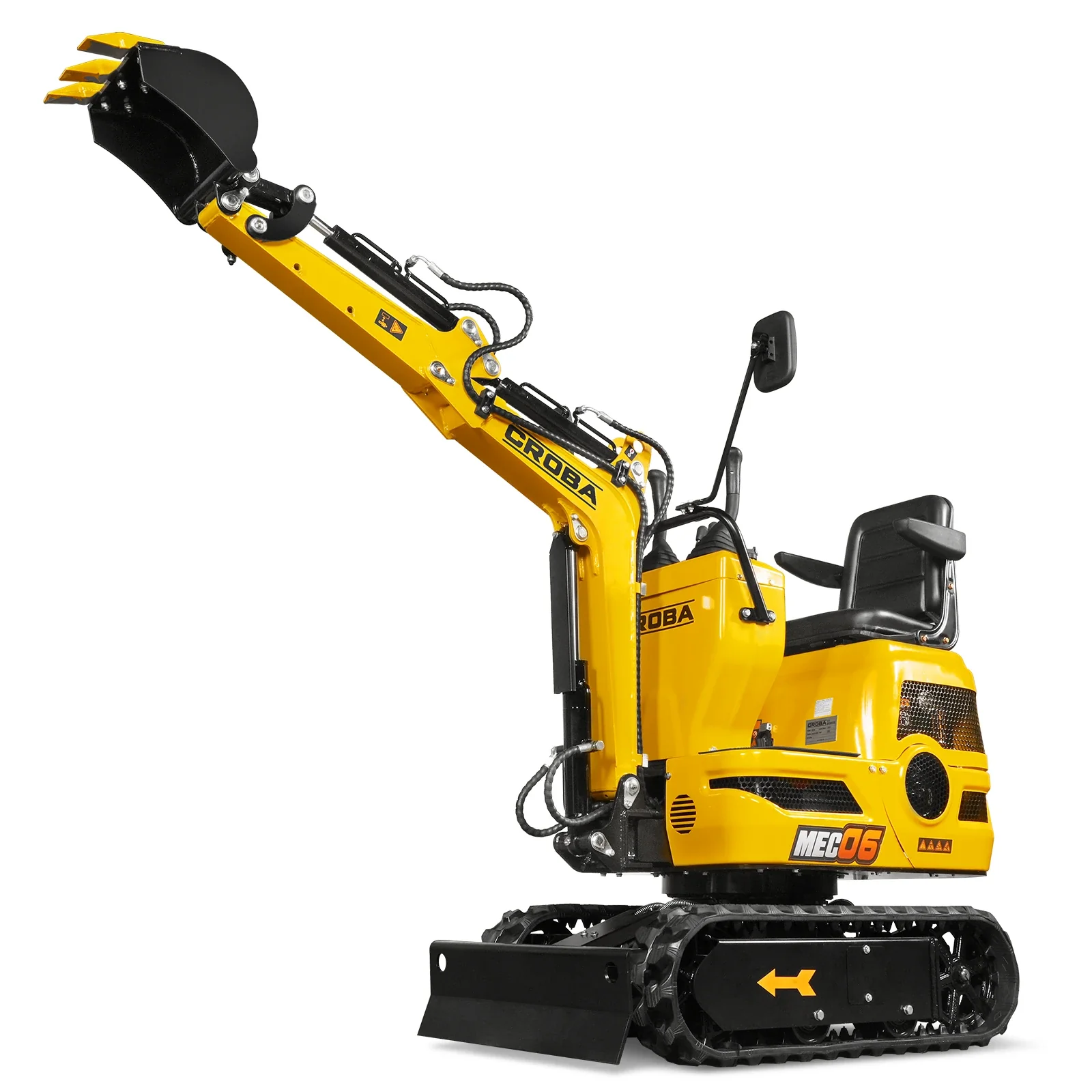

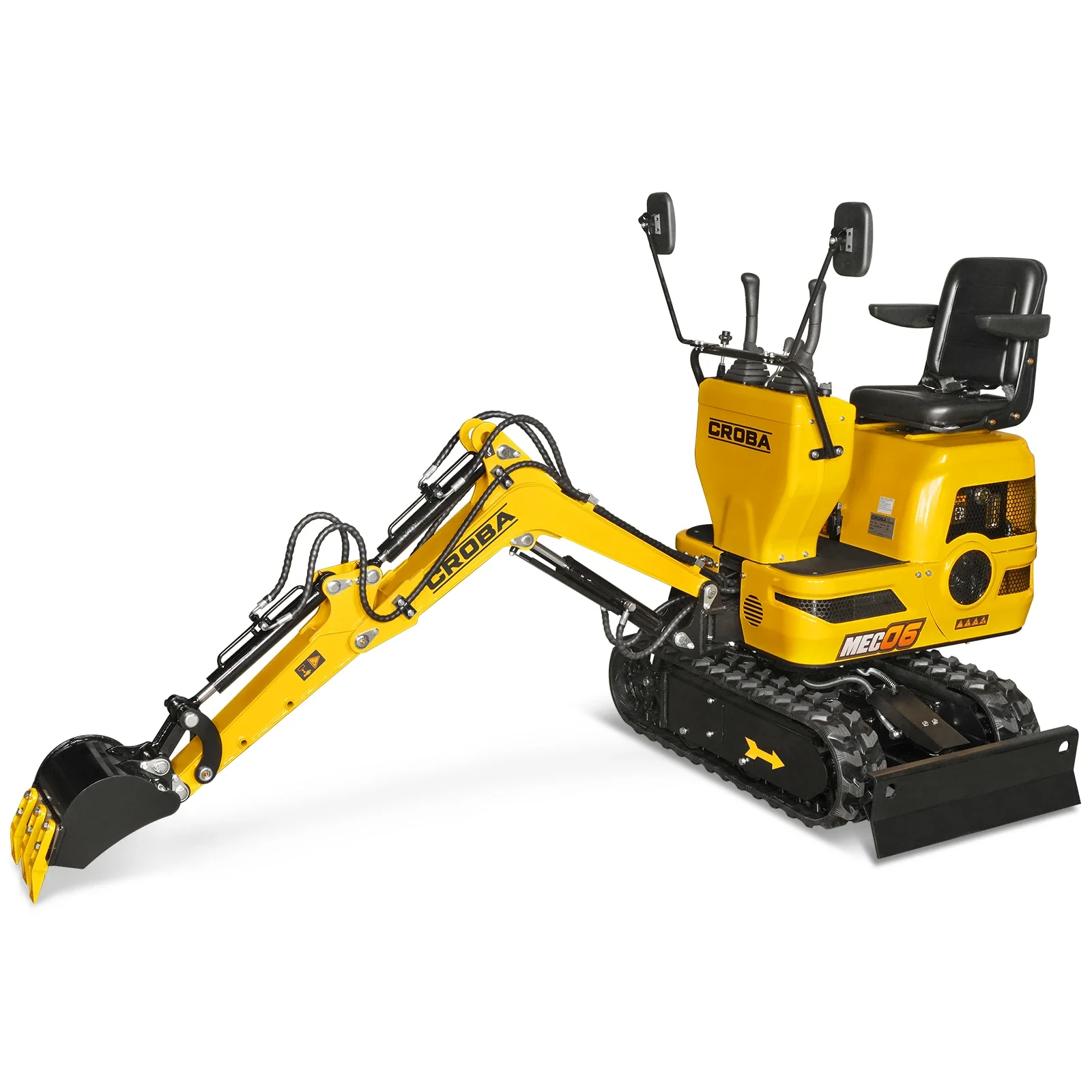

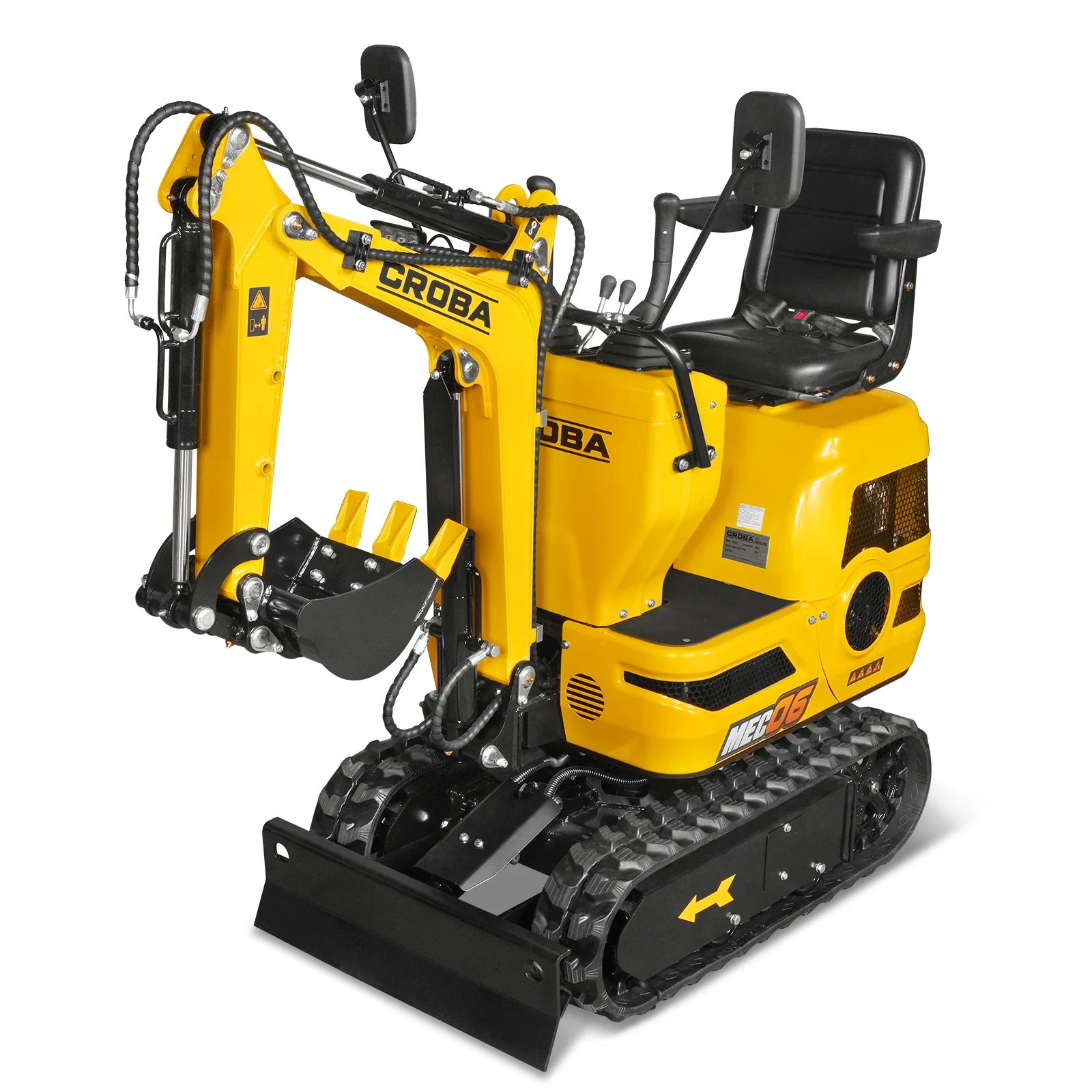

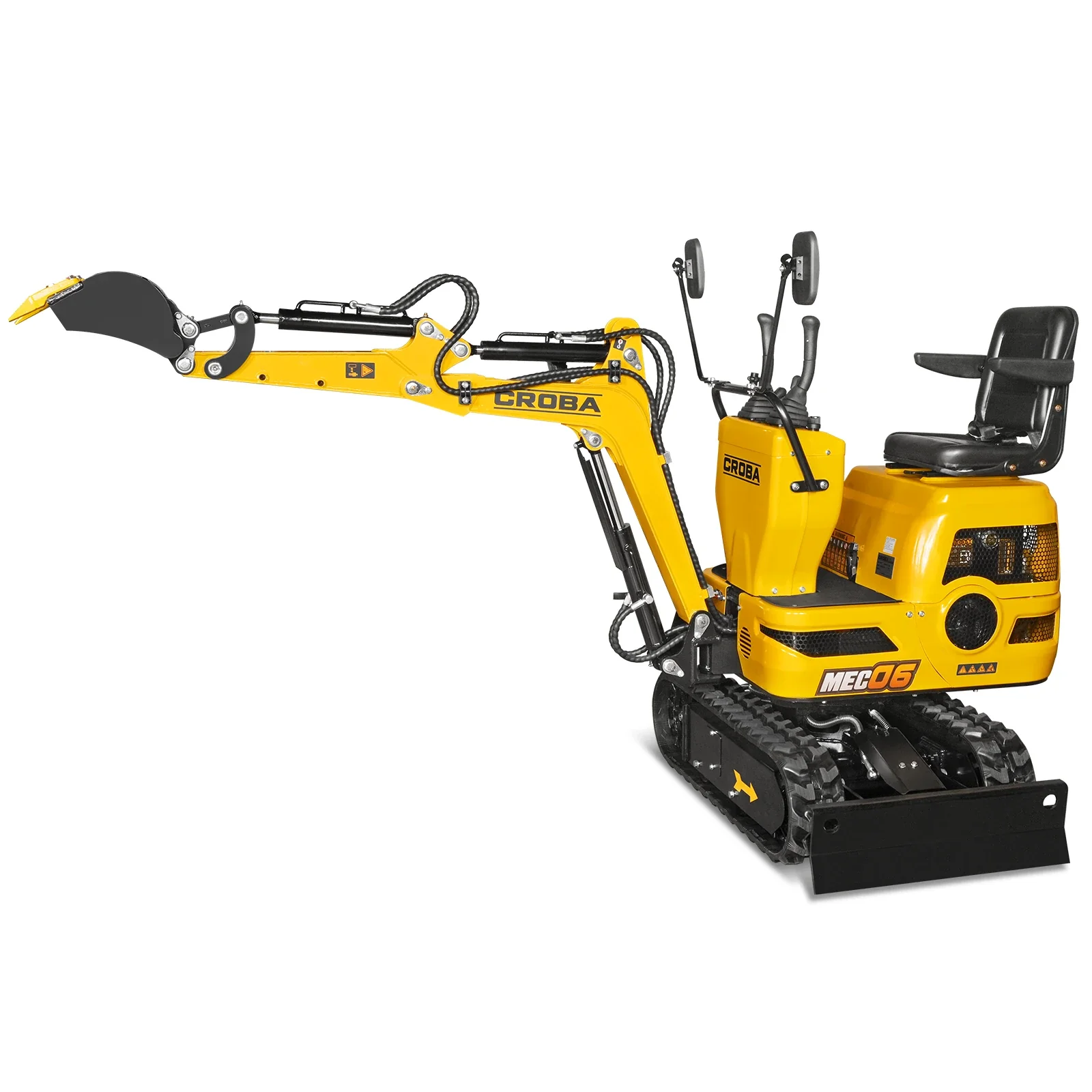

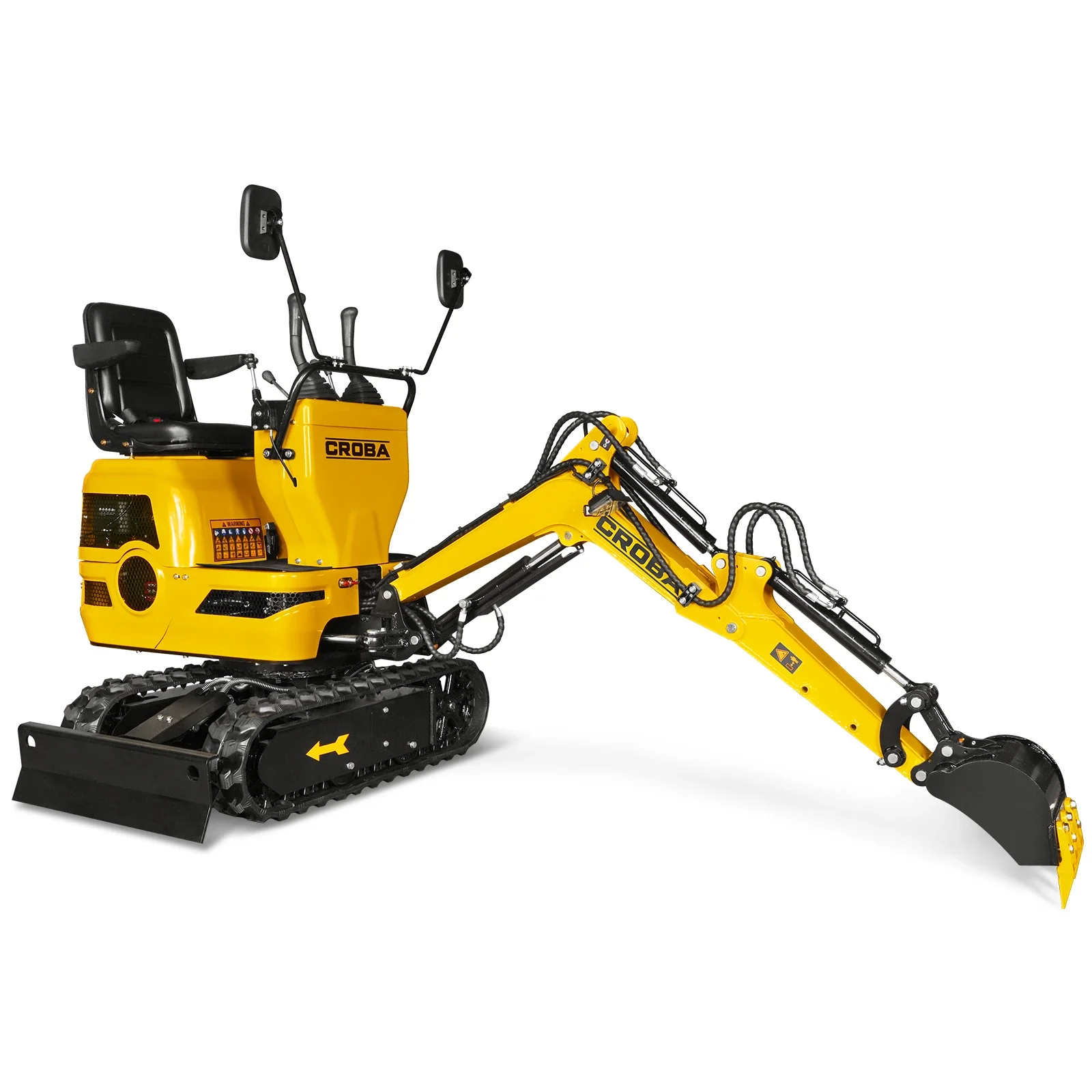

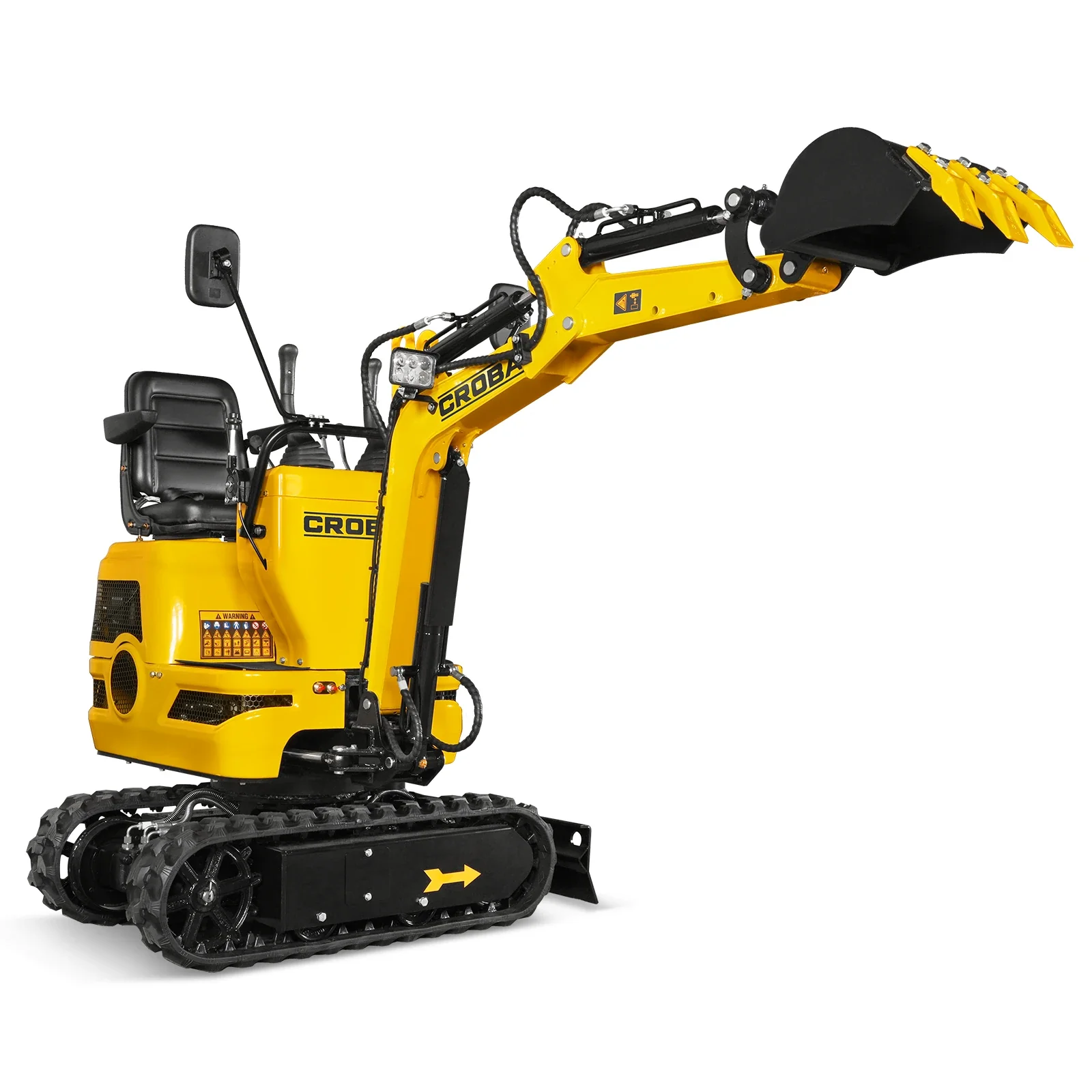

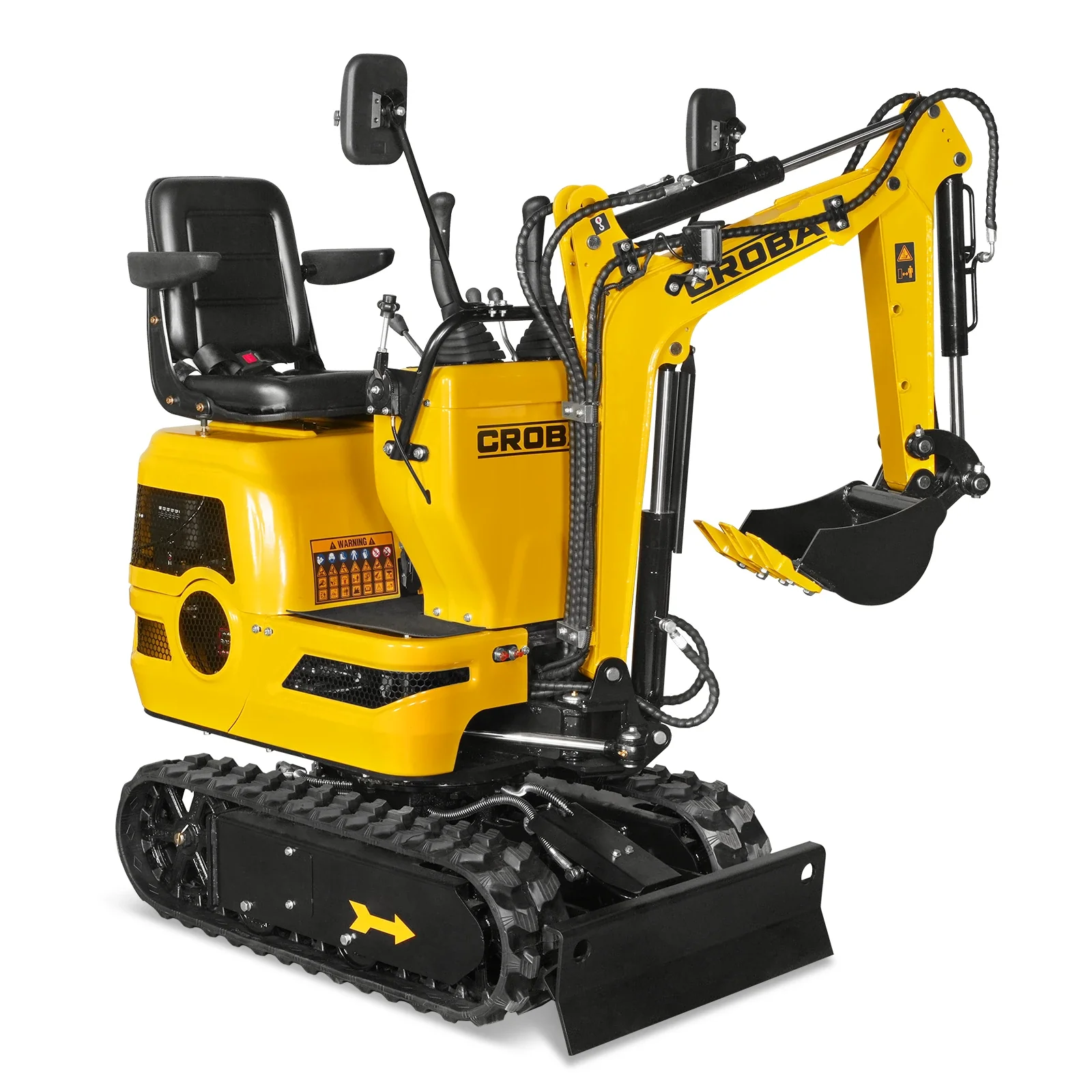

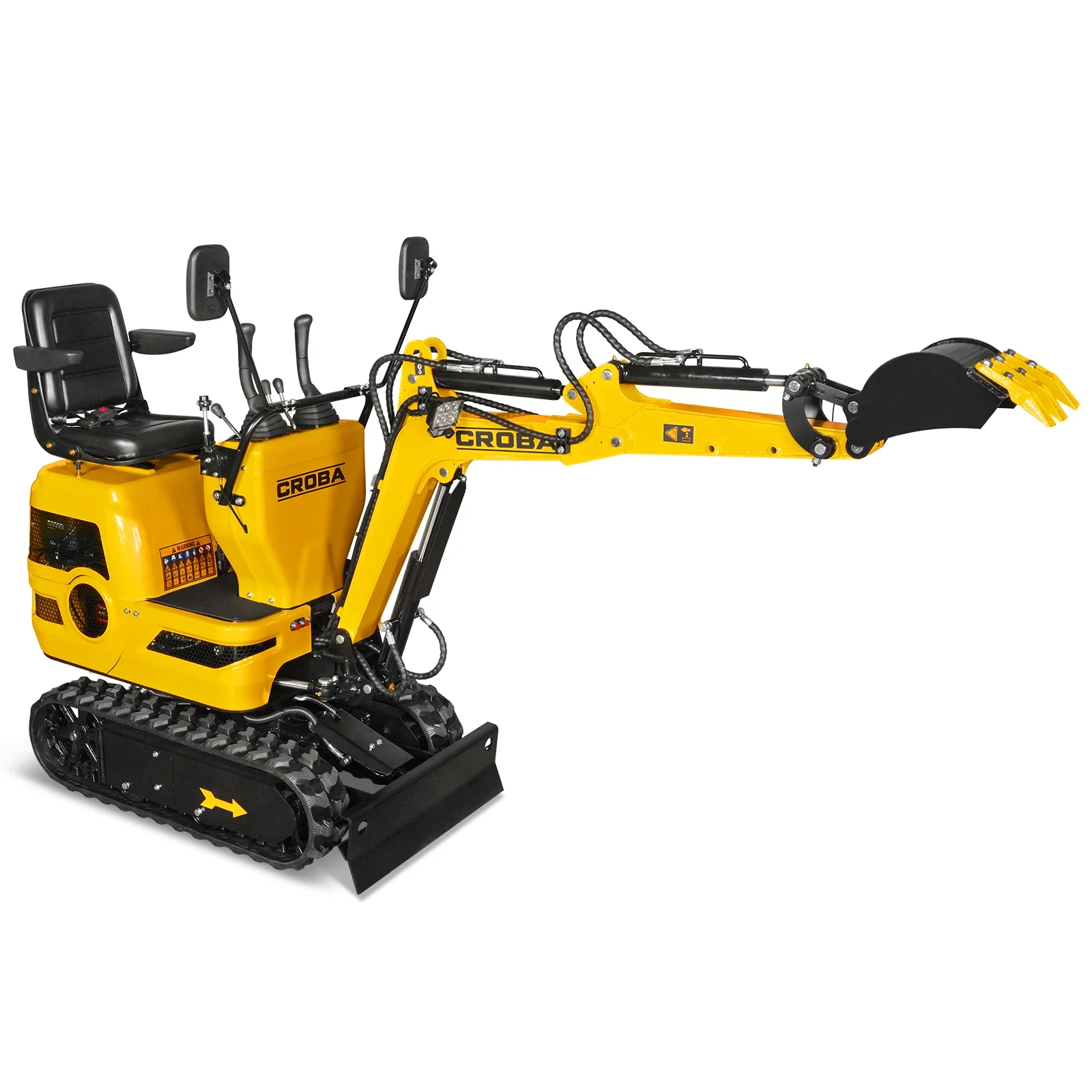

Mini Compact Excavator Loncin 300cc 9hp Engine, 43.3" Max. Digging Depth, 1345 LBS Operating Weight, MEC06

Operating Weight	1345 lb	Hydraulic Oil Tank Capacity	2.64 gal
Standard Bucket Capacity	0.53 ft³	Auxiliary Std Flow	4.76 gal/min
Standard Bucket Width	11.4 in	Max. Tractive Force	742 lbf
Max. Travel Speed	1.12 mile/h	Arm Digging Force	1012 lbf
Slewing Speed	9.5 RPM	Bucket Digging Force	1911 lbf
Max. Gradeability	15°	Rated Lift Capacity	330 lb
Track Ground Pressure	3.84 psi	Lift Radius	78.7 in
Operating Range
Max.Digging Radius On Ground	82.7 in	Max. Vertical Digging Depth	45.3 in
Max. Digging Depth	43.3 in	Min. Turning Radius	47.2 in

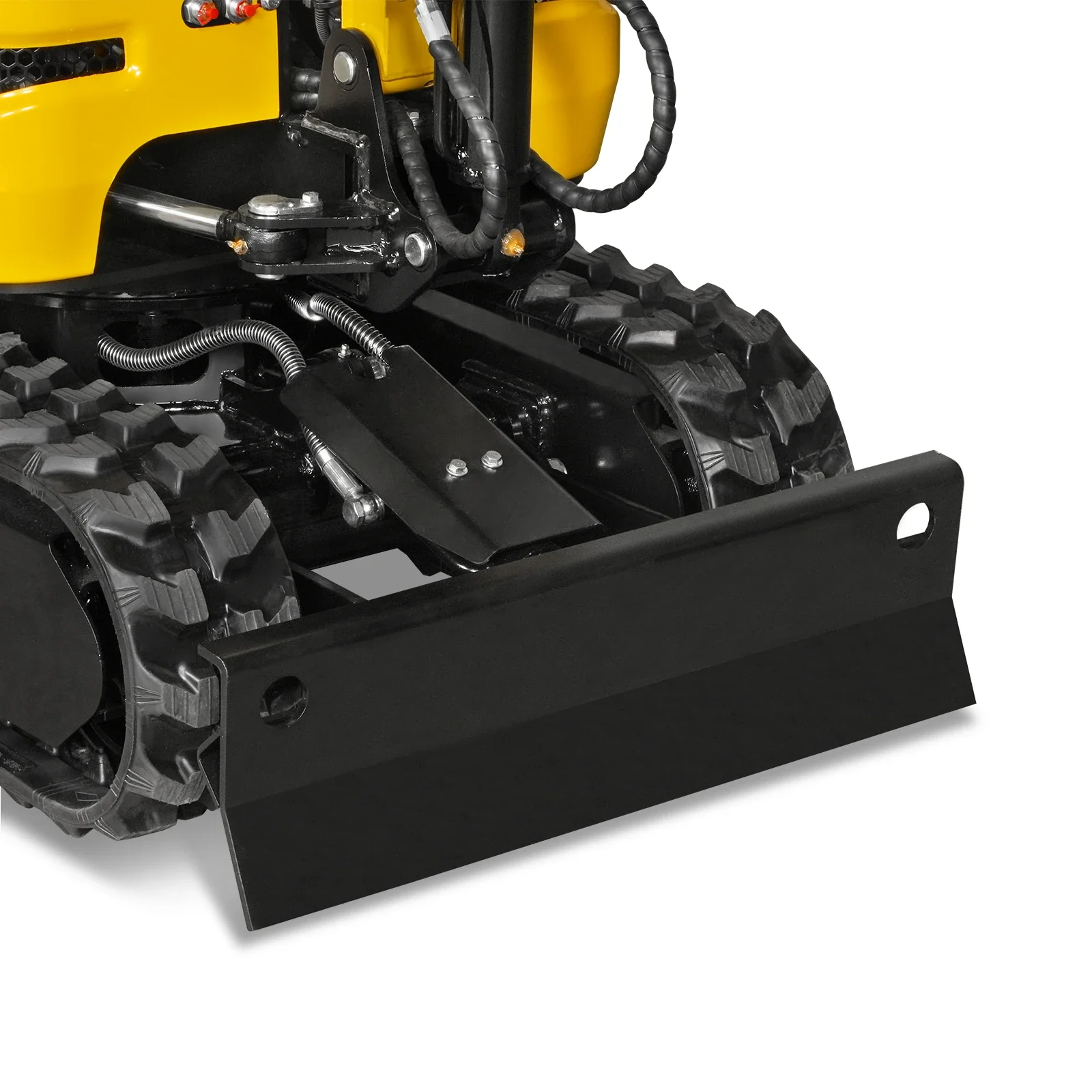

Overall Operating Height (Fully Raised)	79.9 in	Max. Lifting Height Dozer Blade	5.5 in
Max. Digging Radius	90.6 in	Max. Depth Dozer Blade	5.5 in
Max. Unloading Height	67.3 in
Main Dimensions
Wheel Track	31.5 in	Track Height	12.6 in
Track Length	43.3 in	Transportation Length	83.4 in
Upper Chassis Ground Clearance	4.5 in	Height Of Seat To Ground	47.2 in
Counterweight Turning Radius	23.6 in	Overall Height	68.1 in
Chassis Width	28 in	Boom Swing-Right	65°
Track Width	5.9 in	Boom Swing-Left	55°

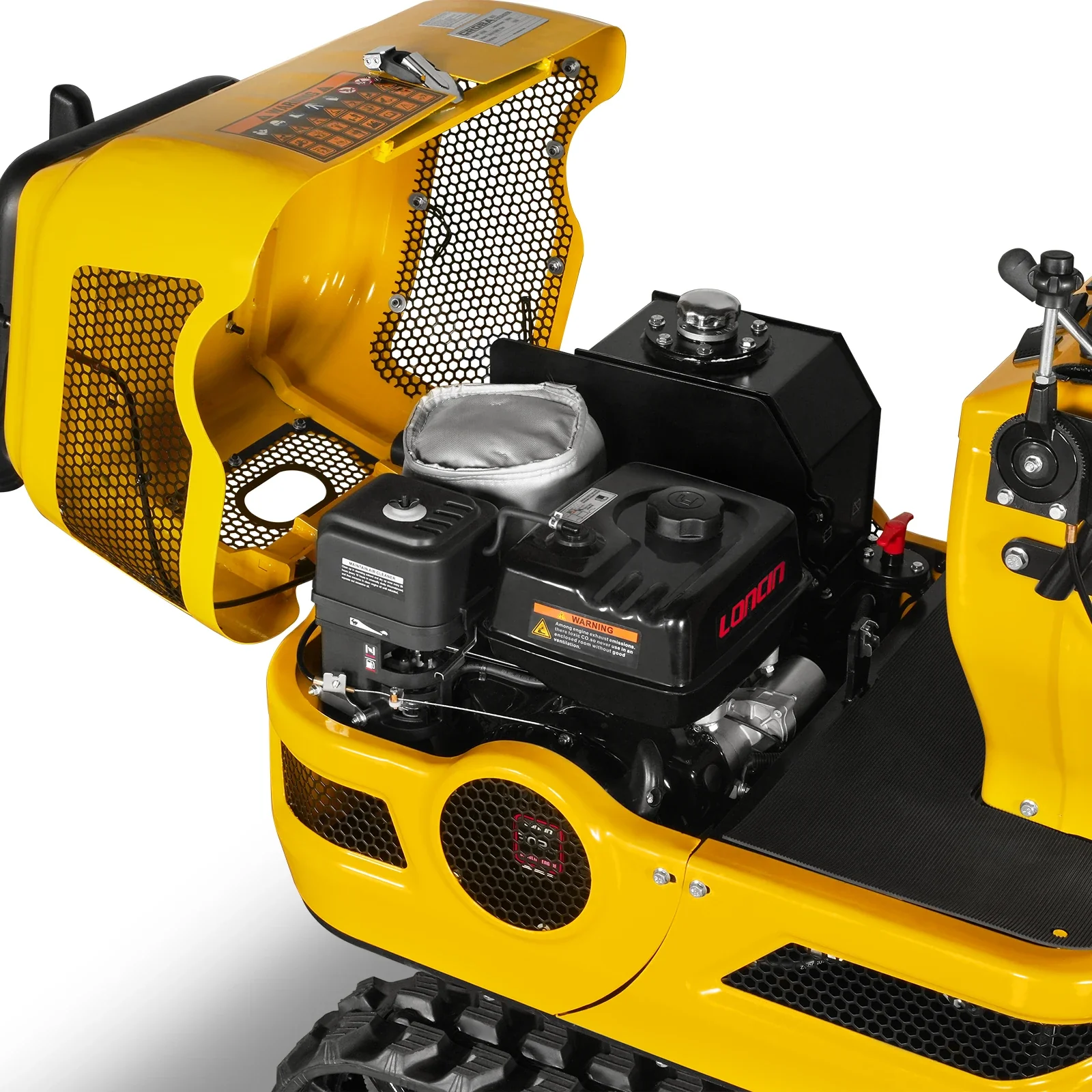

Engine
Model	Loncin G300FDA	Max. Net Torque	20.3 N.m/2500 RPM
Displacement	300 cc; 9 HP	Fuel Tank Capacity	1.45 gal
Engine Type	4-stroke, overhead valve, single cylinder	Engine Oil Capacity	0.25 gal
Start Type	Electric start	Engine Oil Type	10W-30
Rated Power	6.8 KW/3600 RPM
Service
Package Method	Steel Frame Packaging	Package Size	89x29x49 in
Warranty for Machine/Engine	1 Year	Weight (N.W./G.W.)	1345/1510 lb

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
