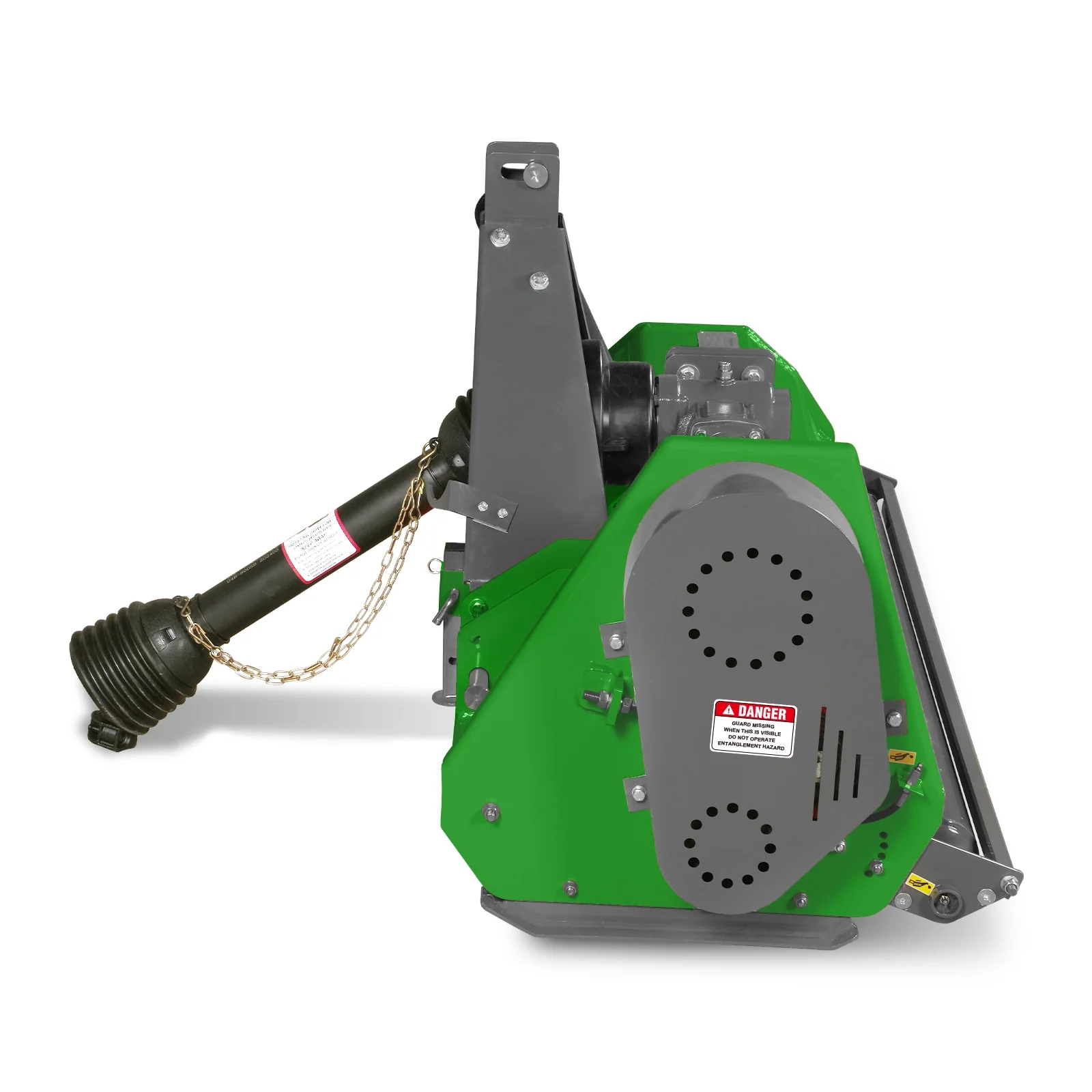

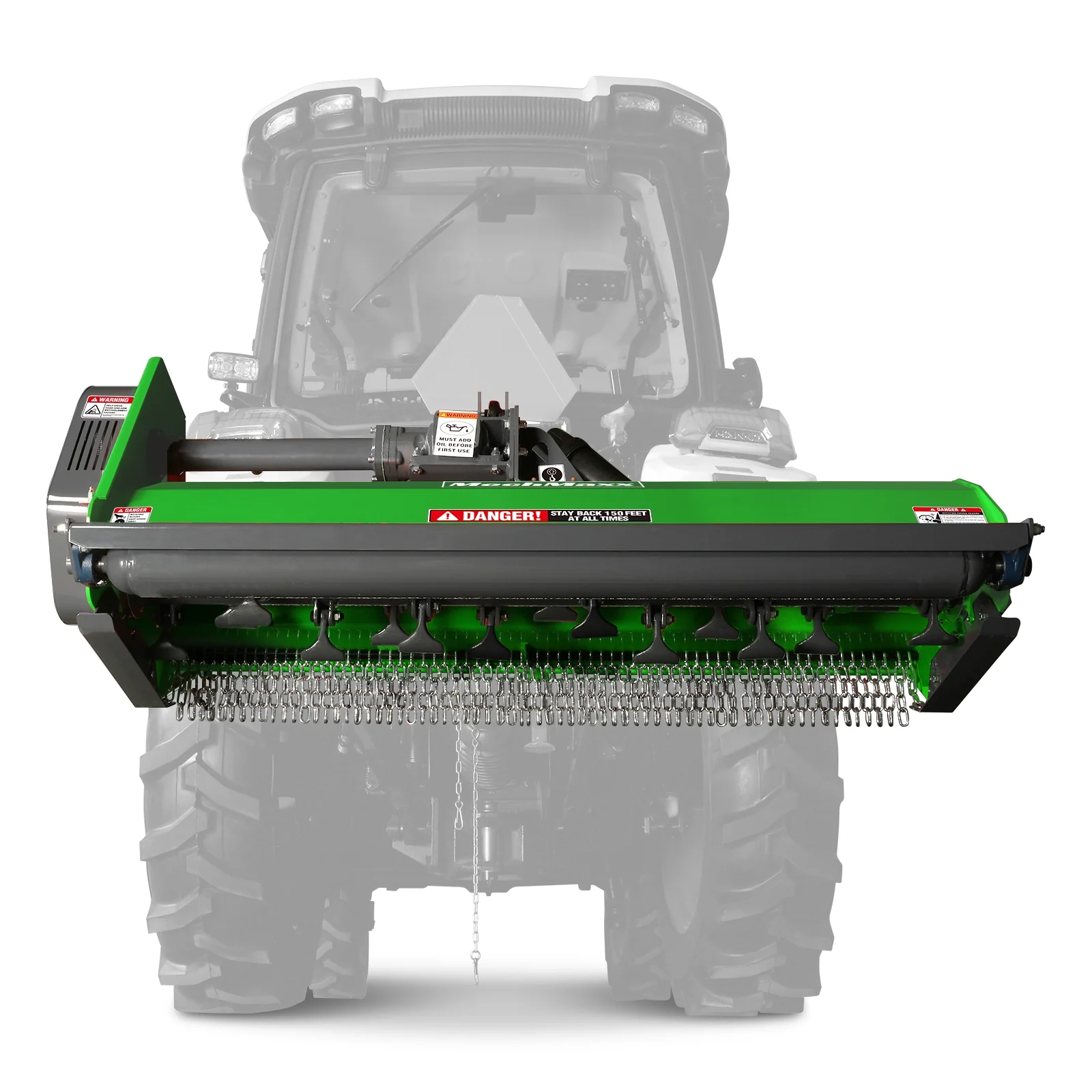

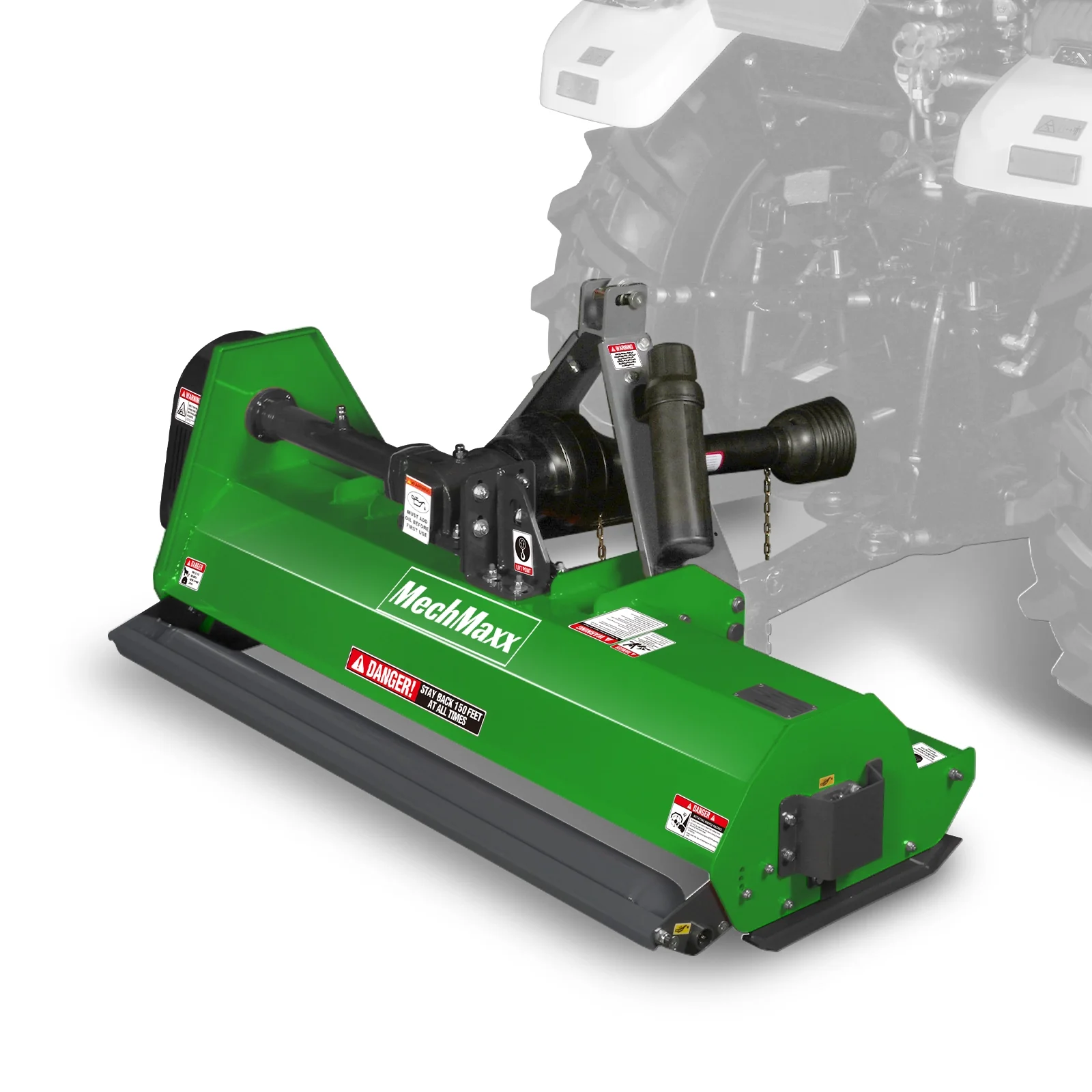

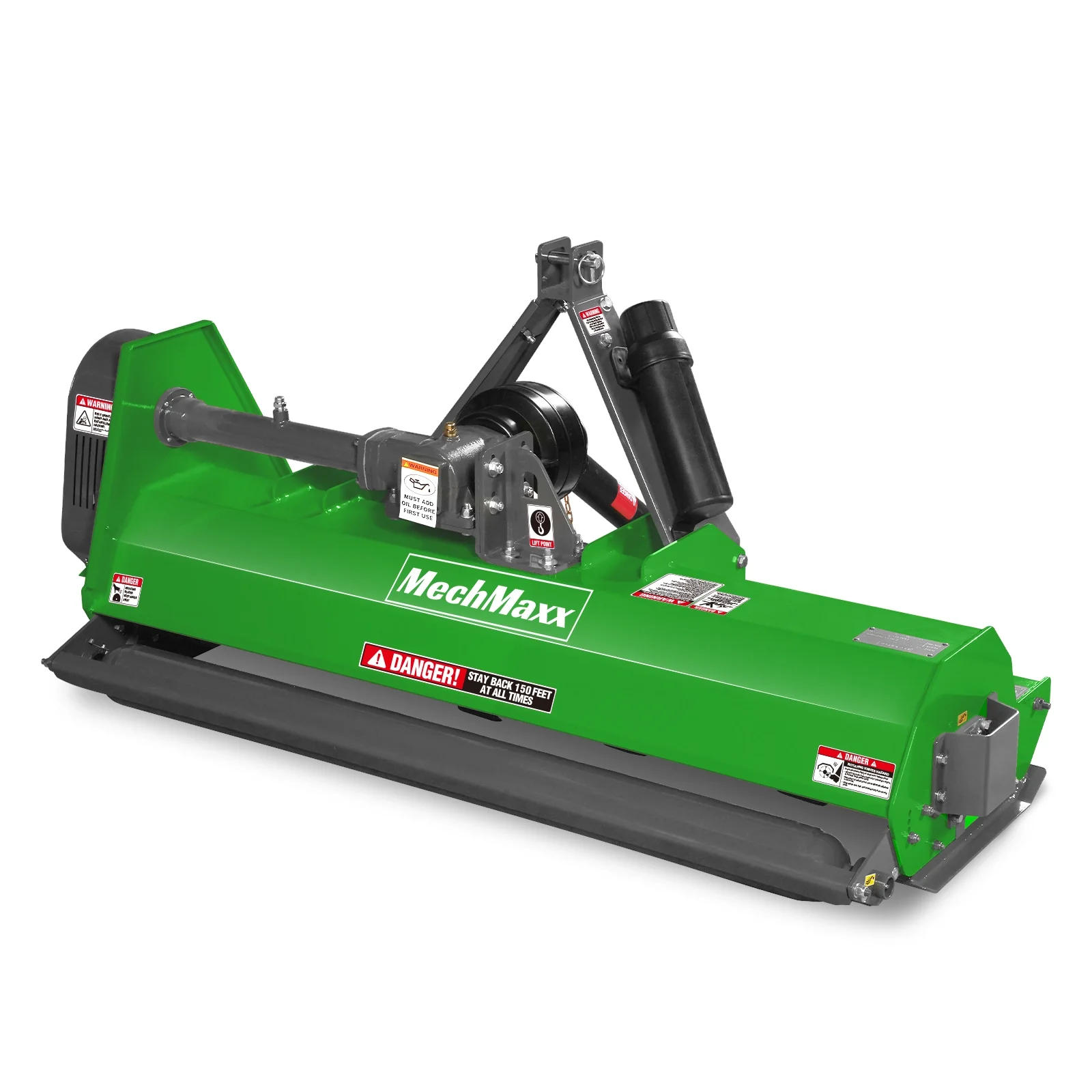

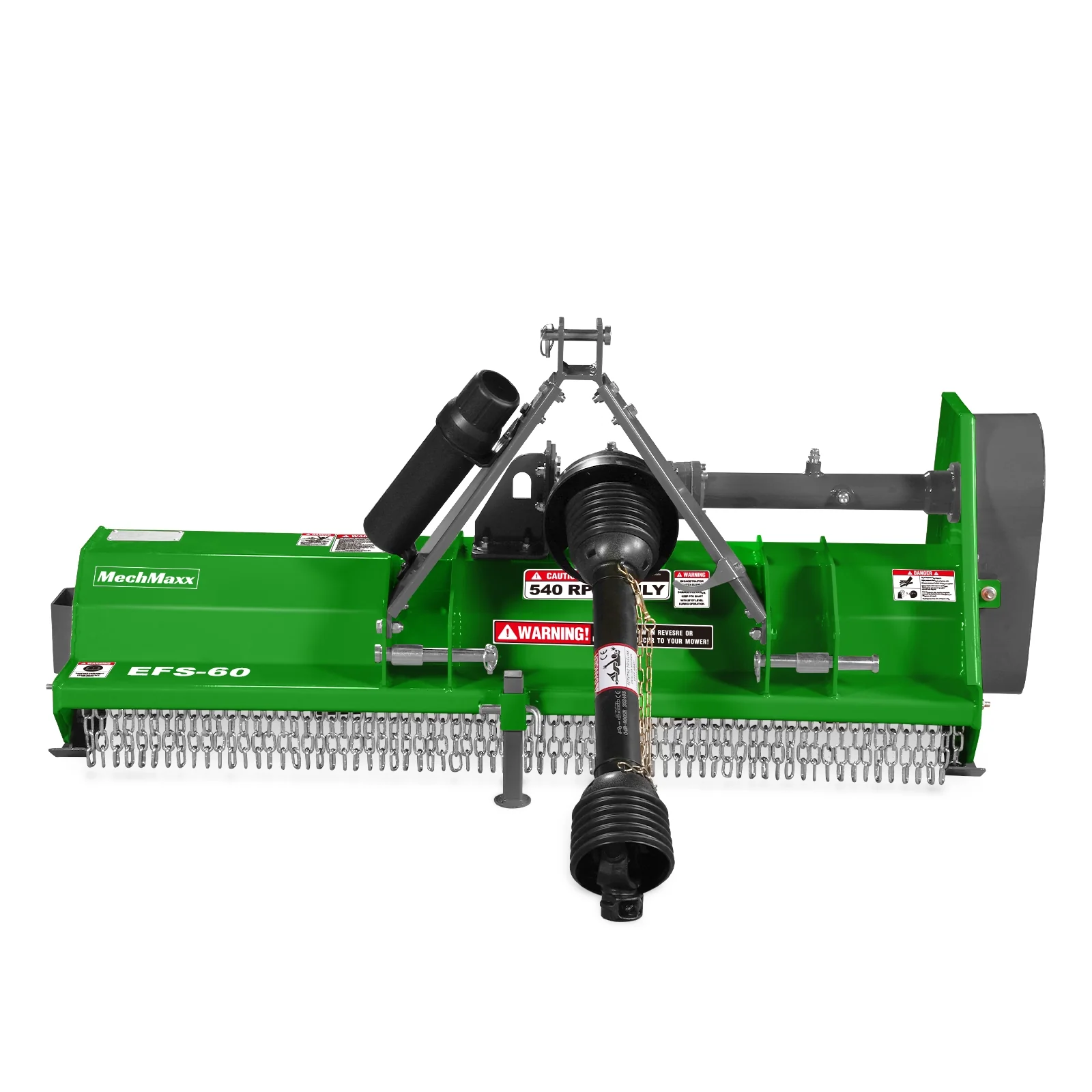

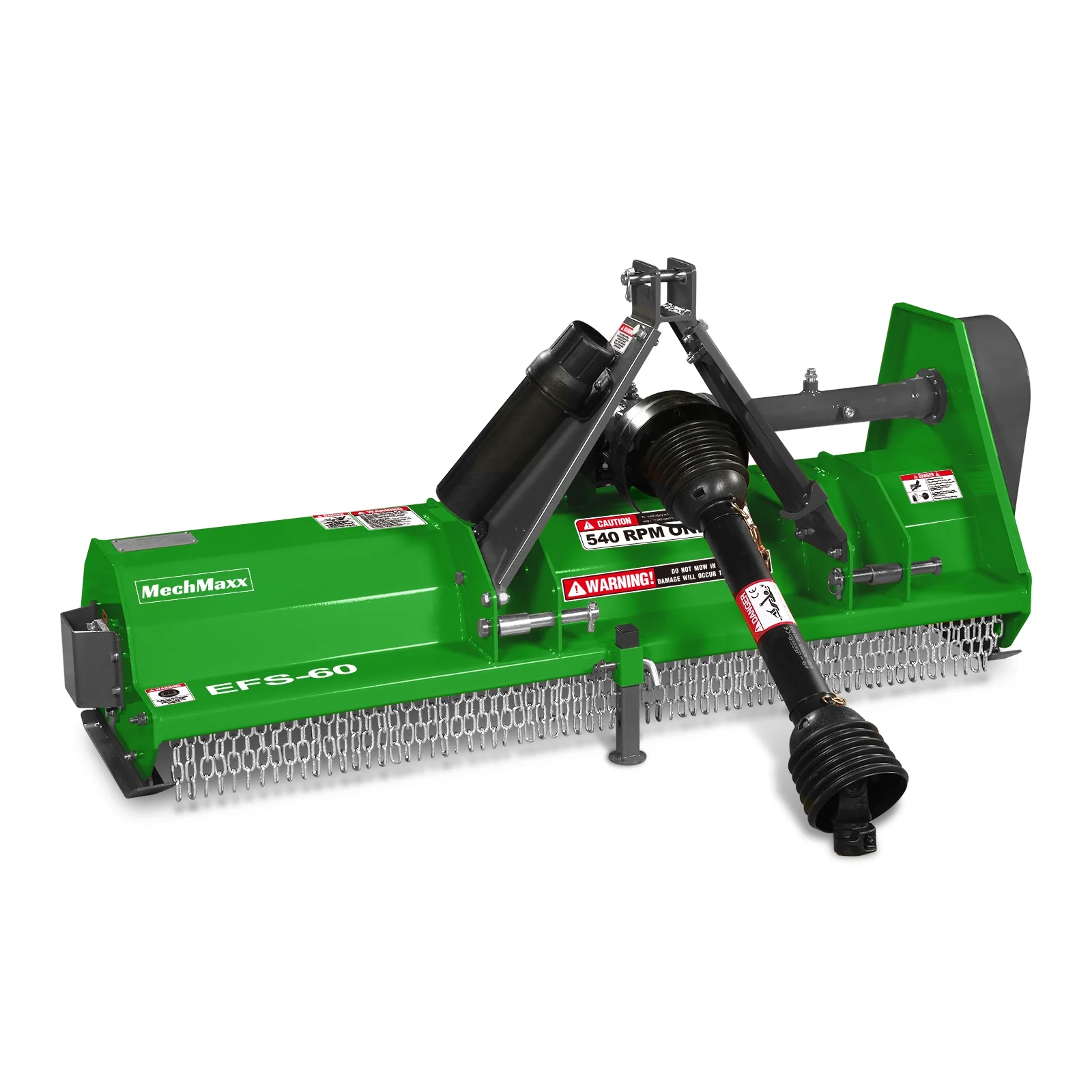

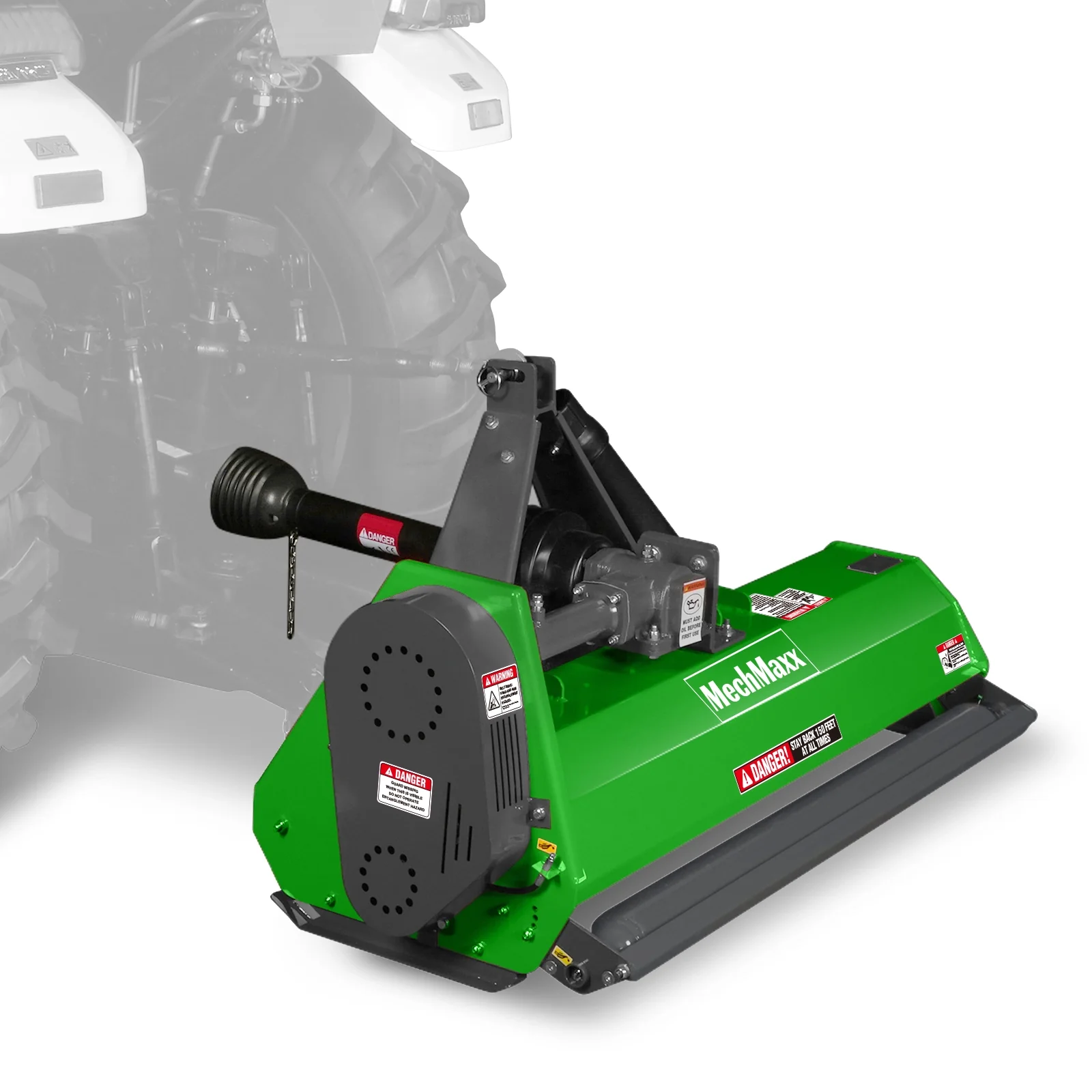

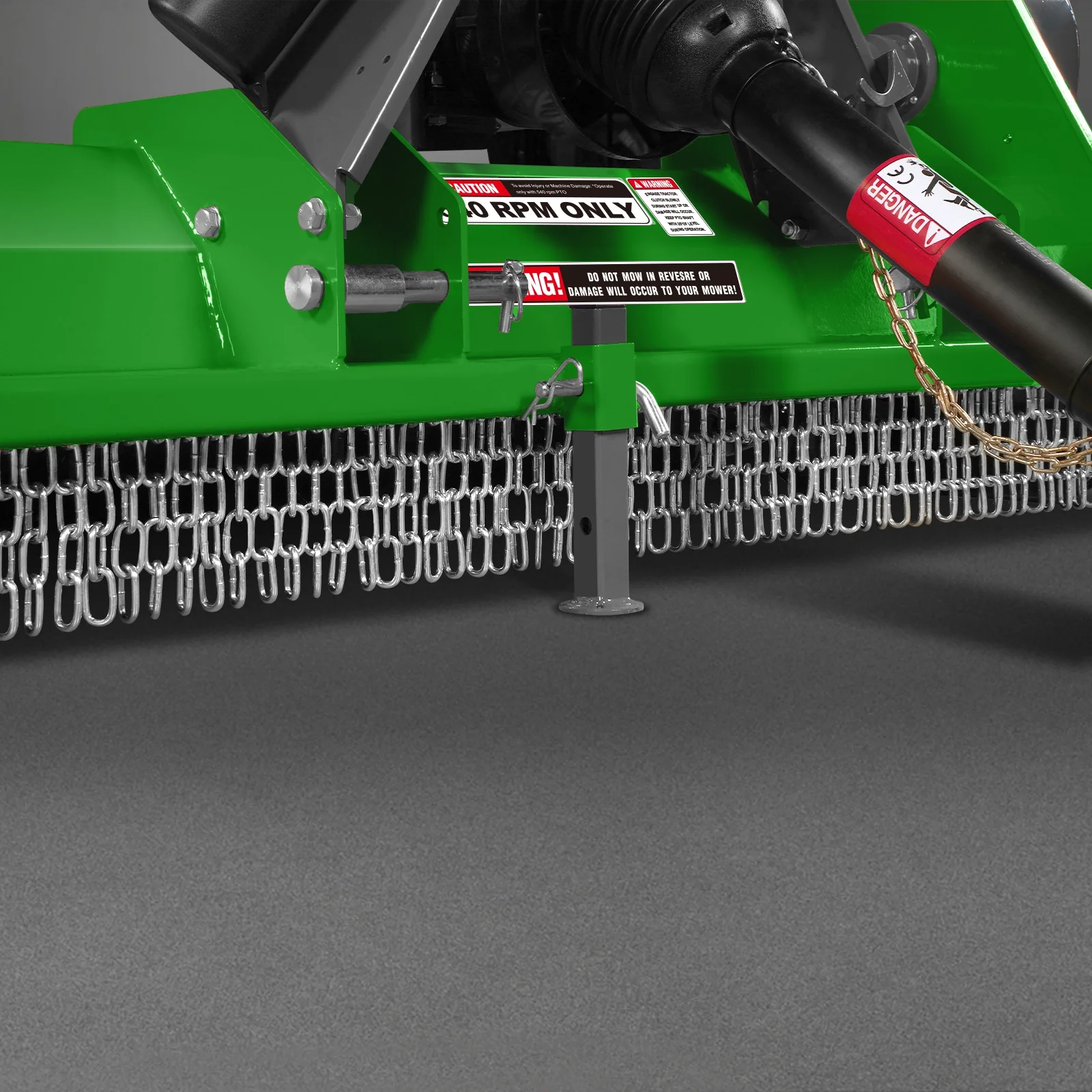

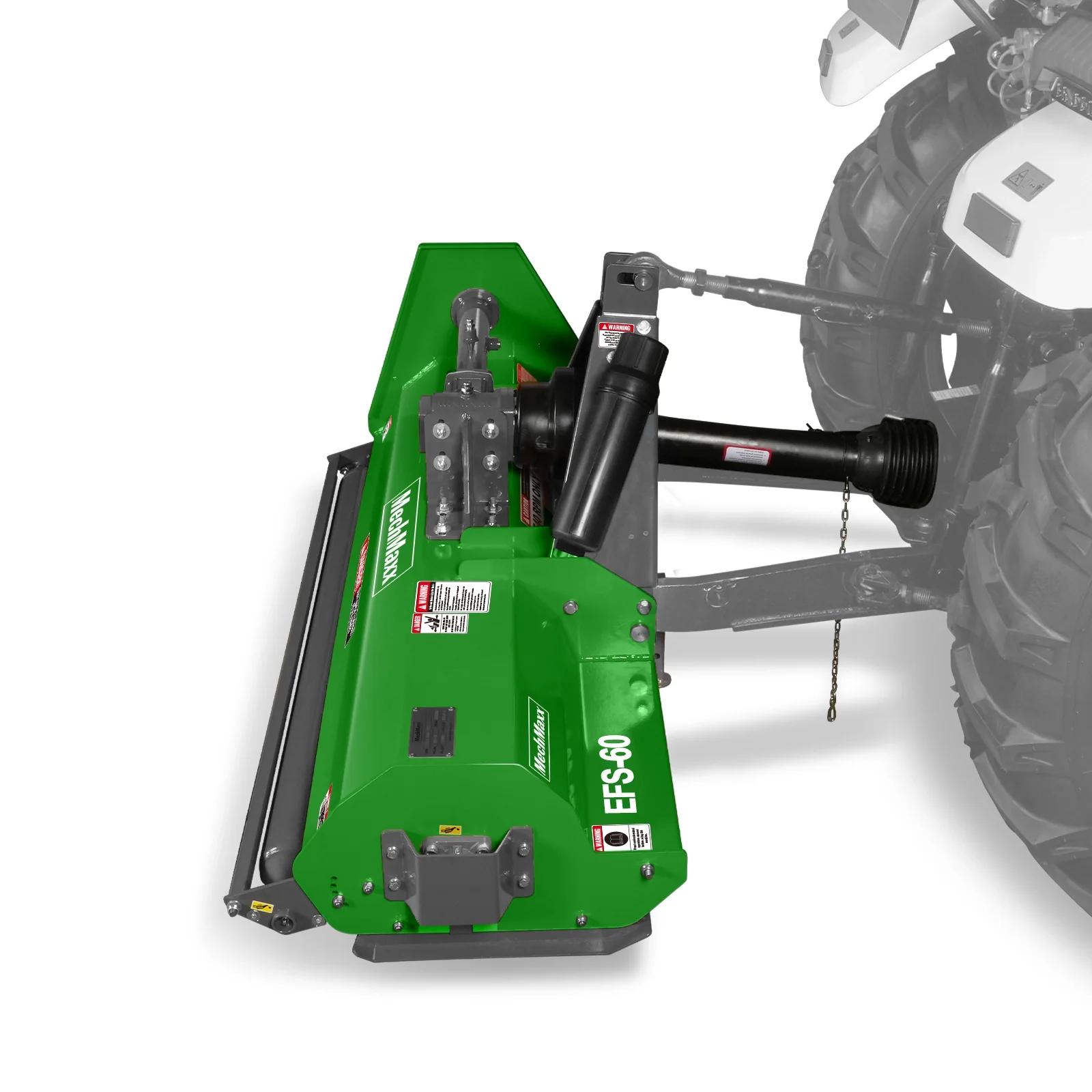

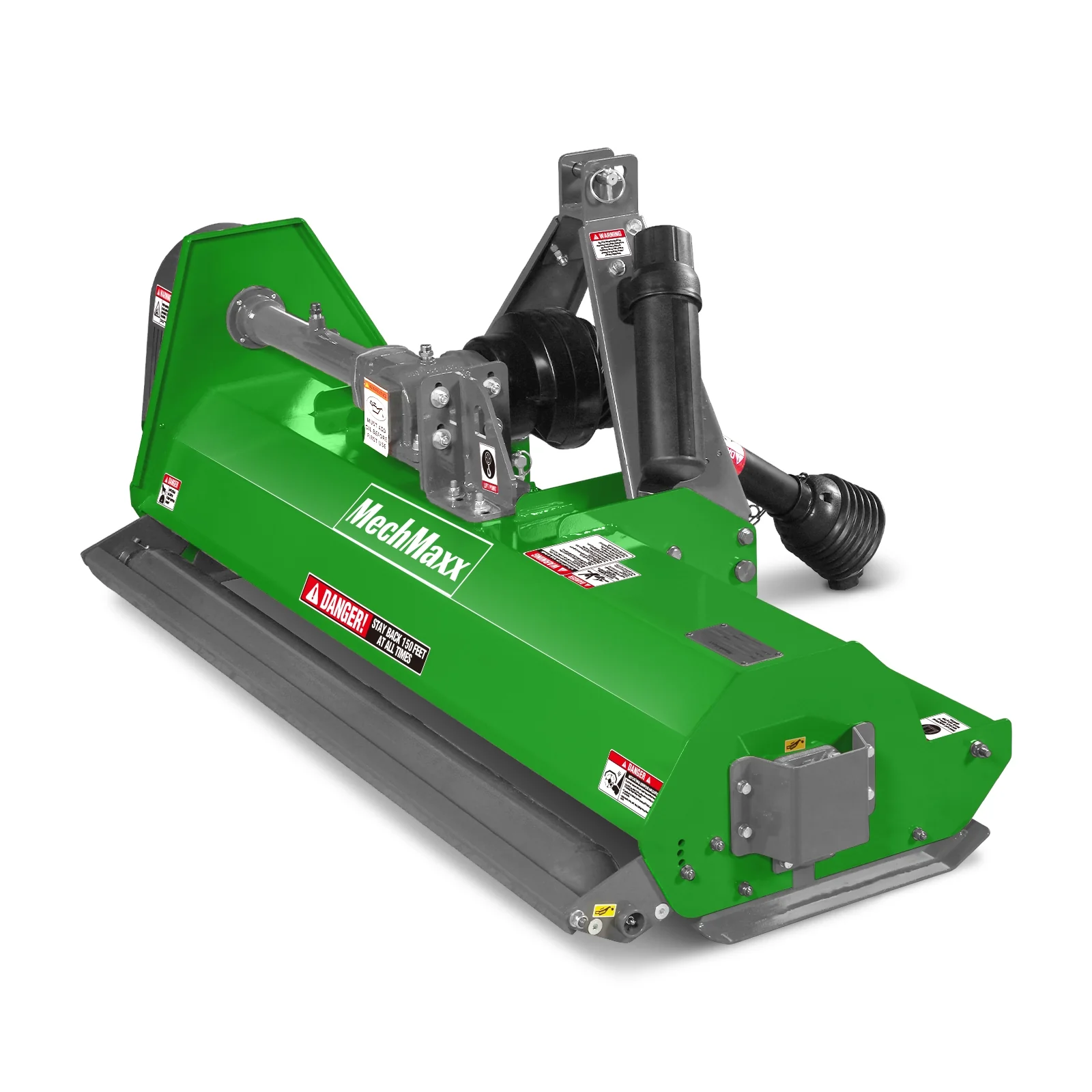

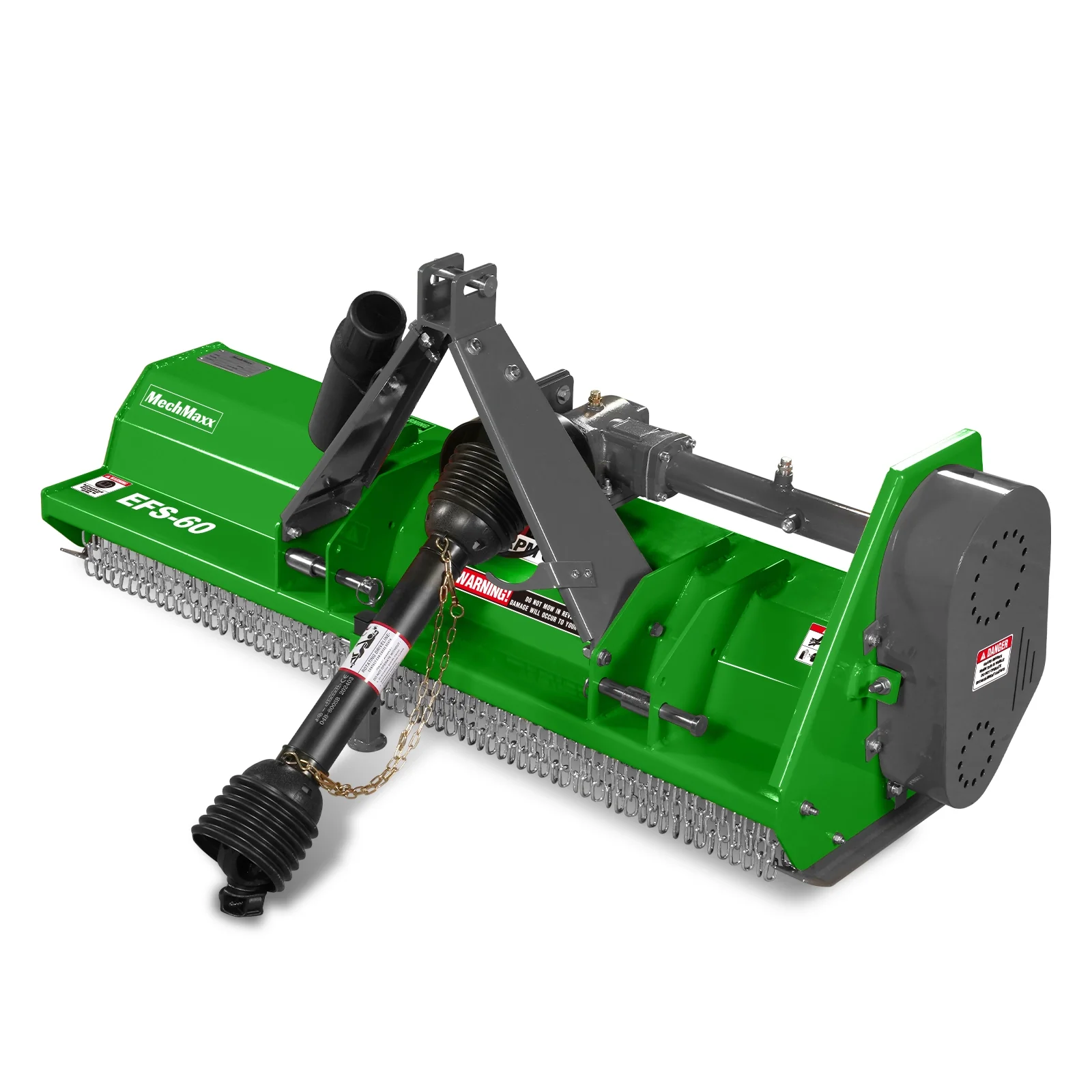

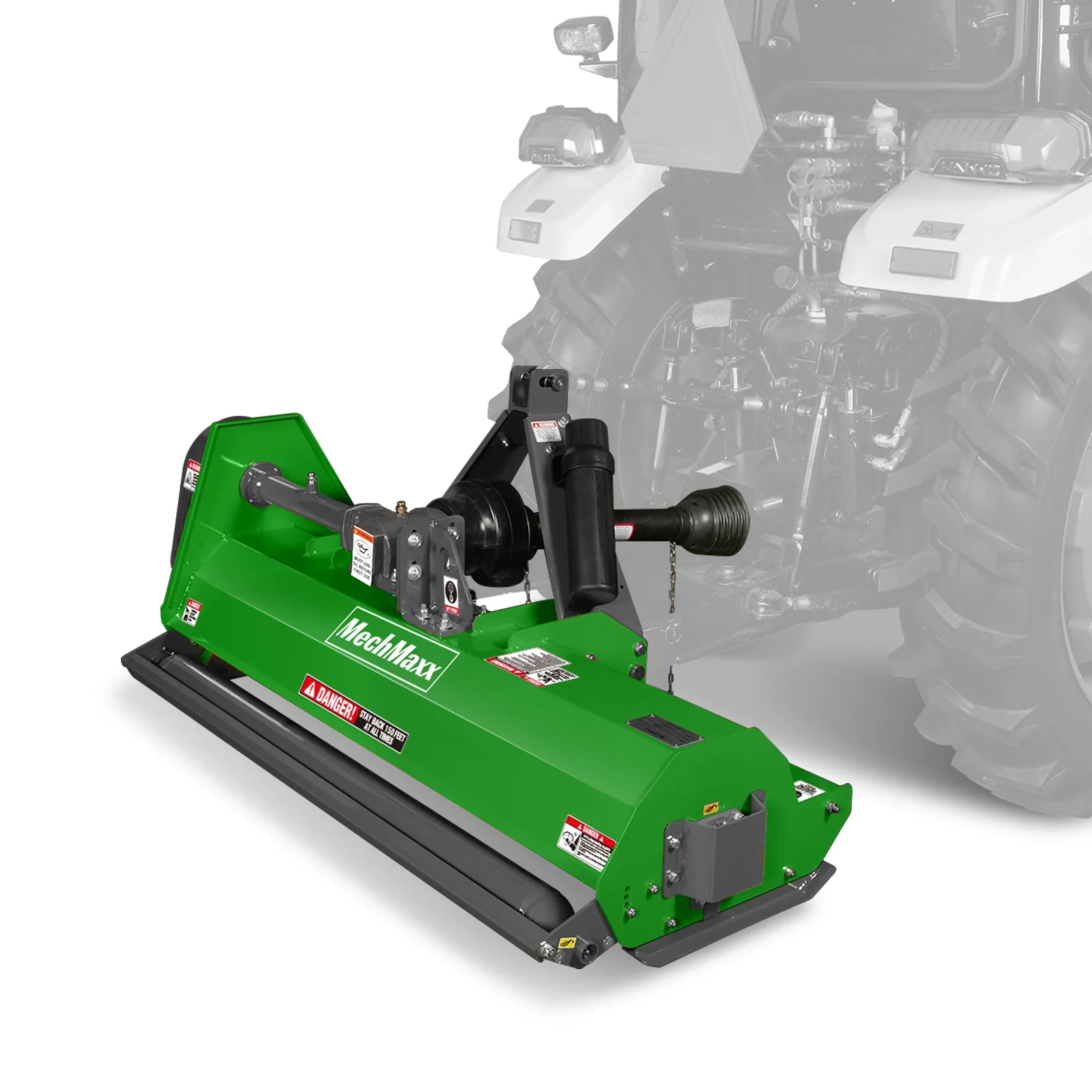

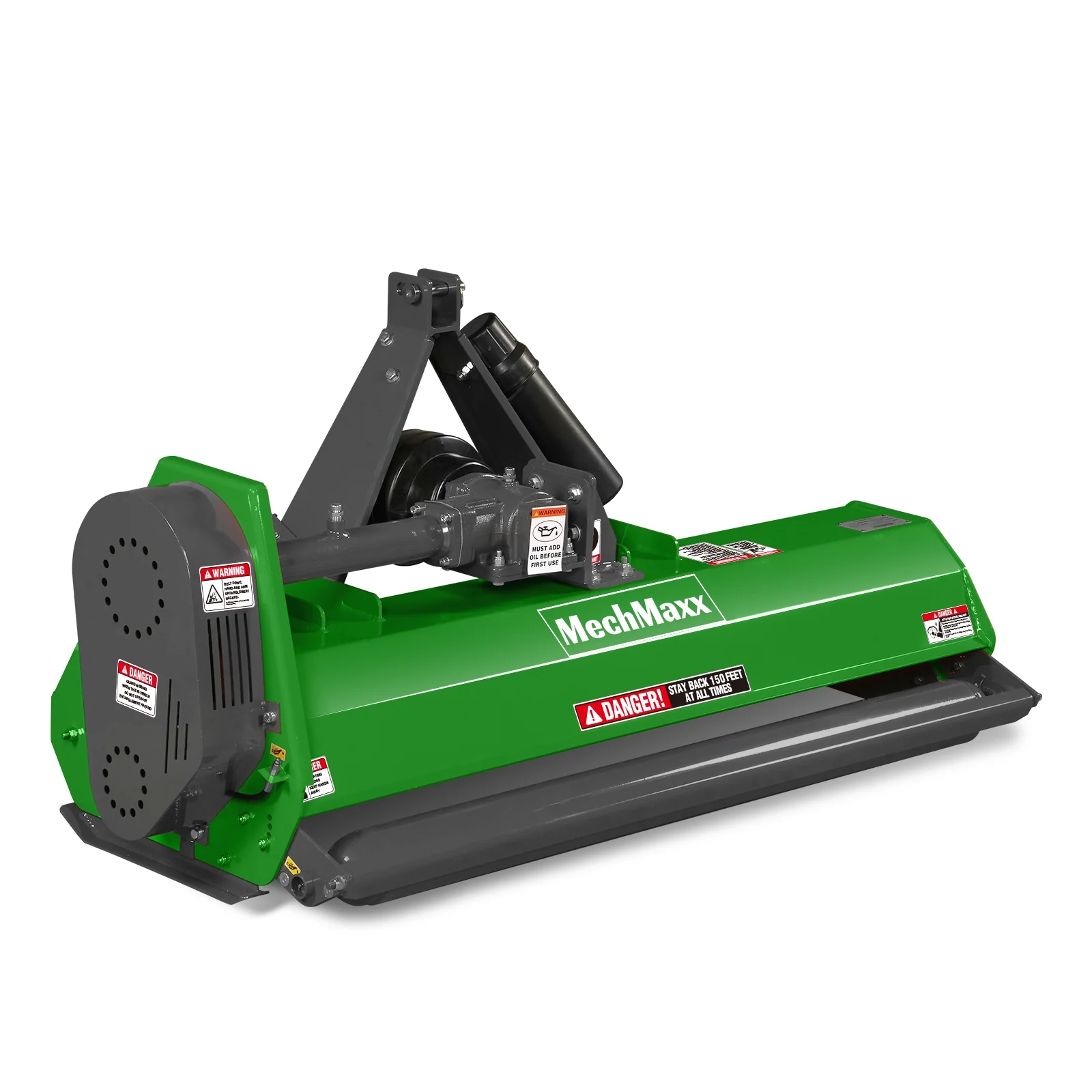

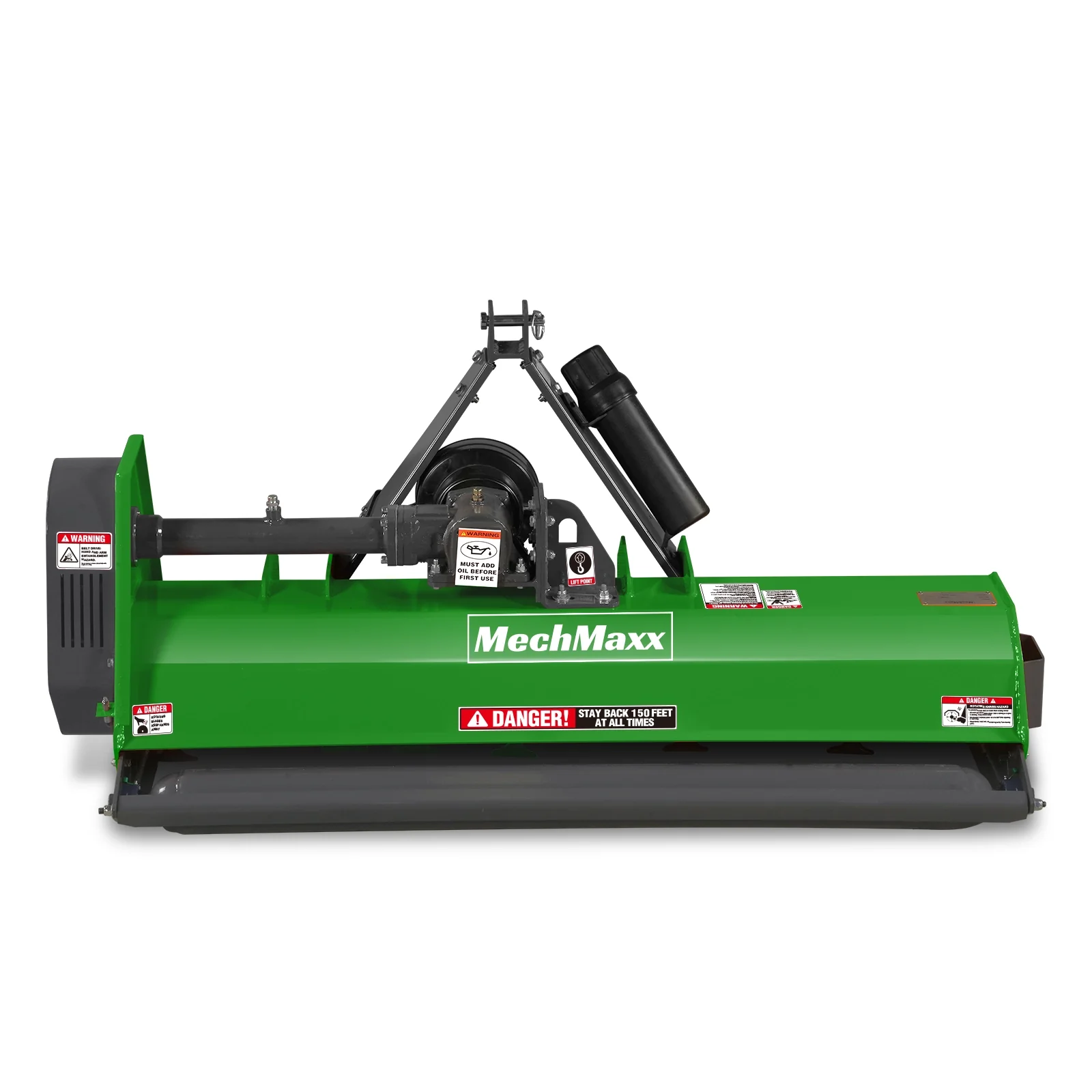

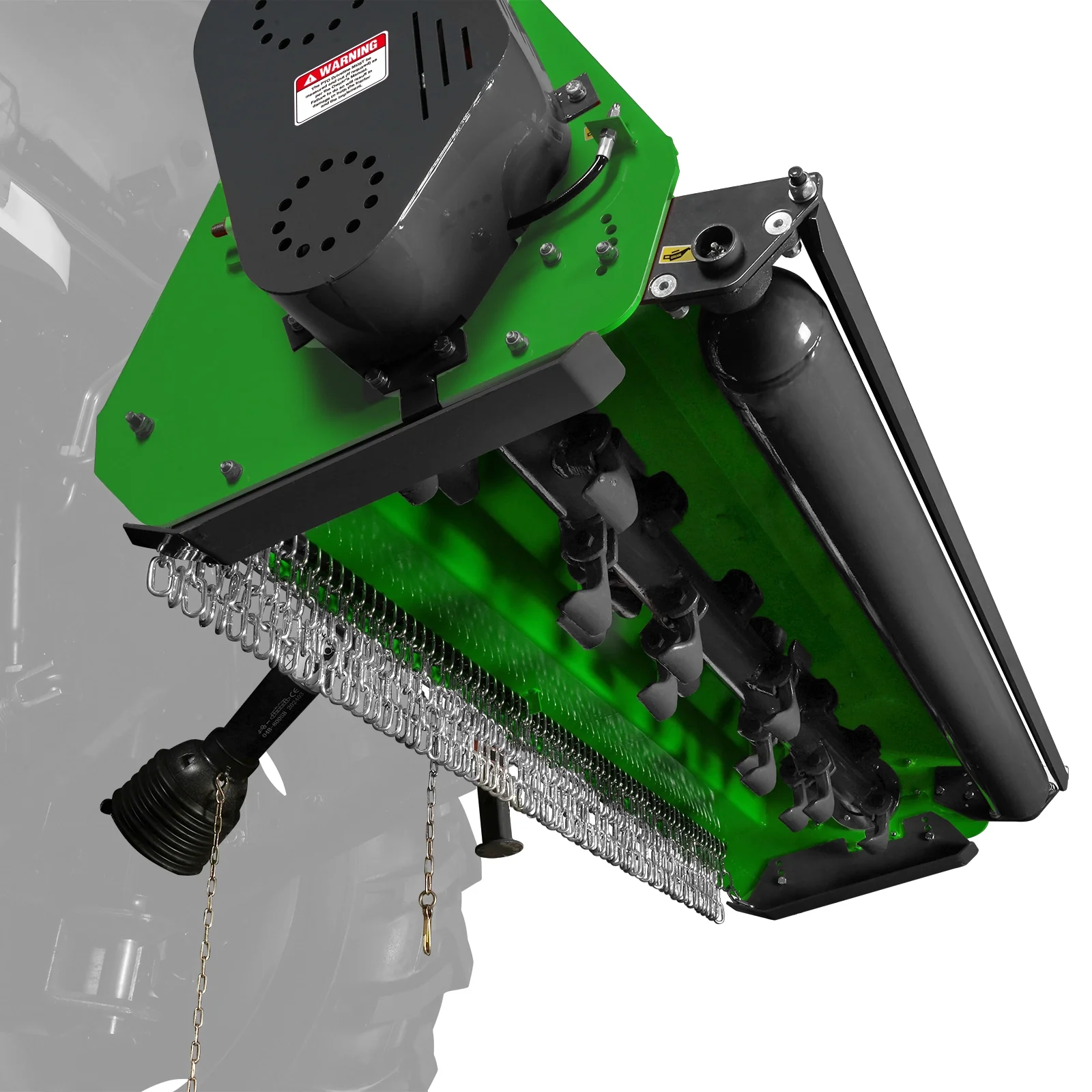

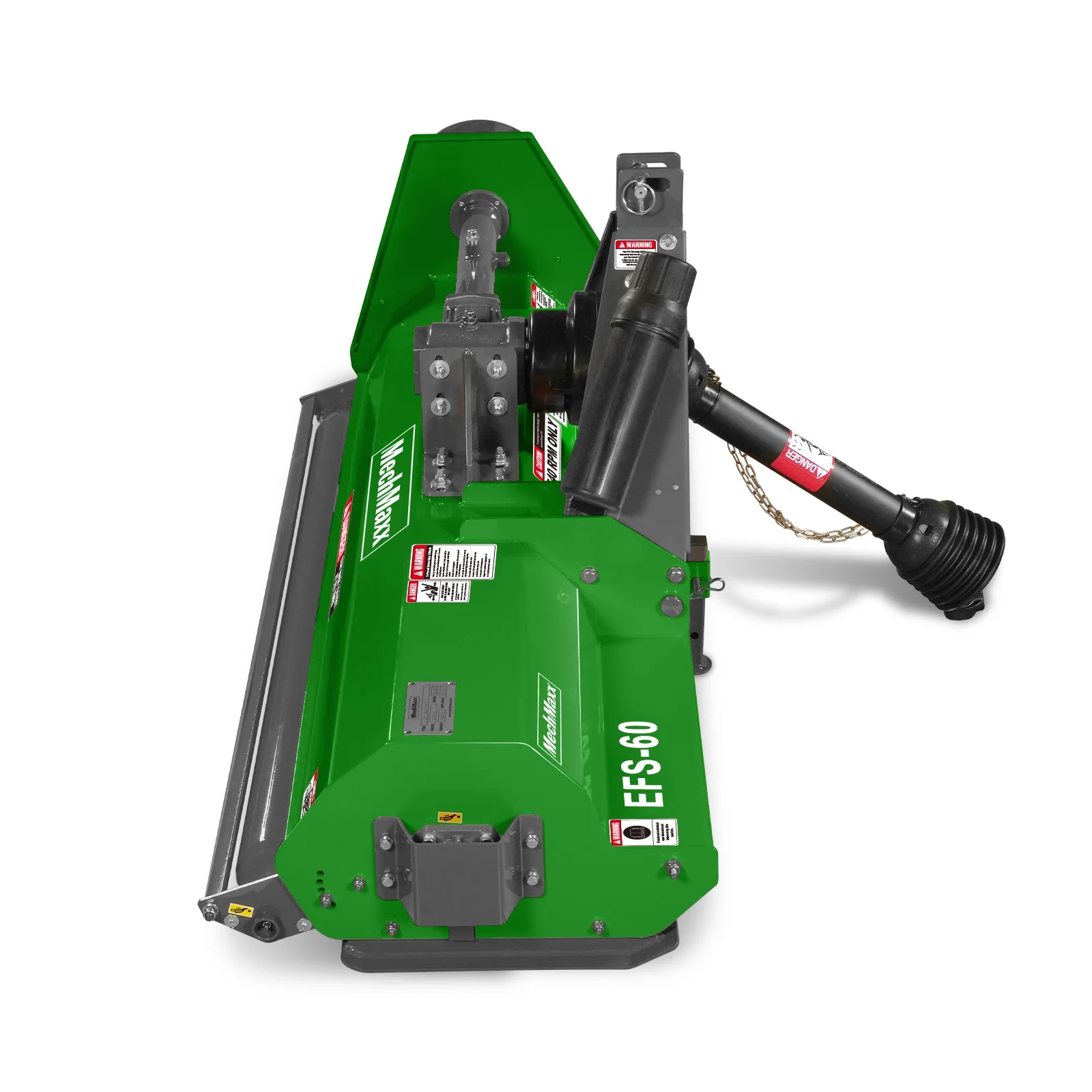

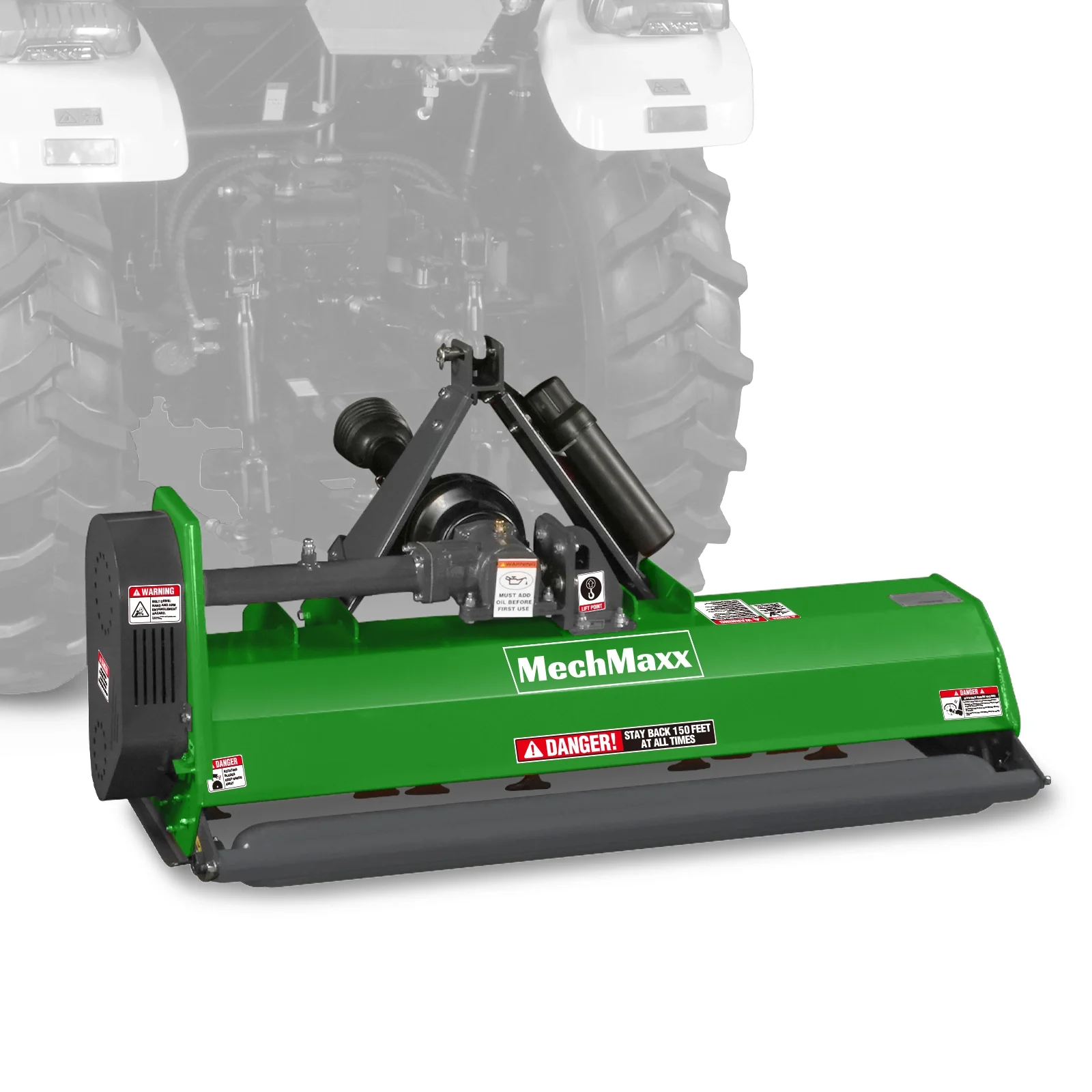

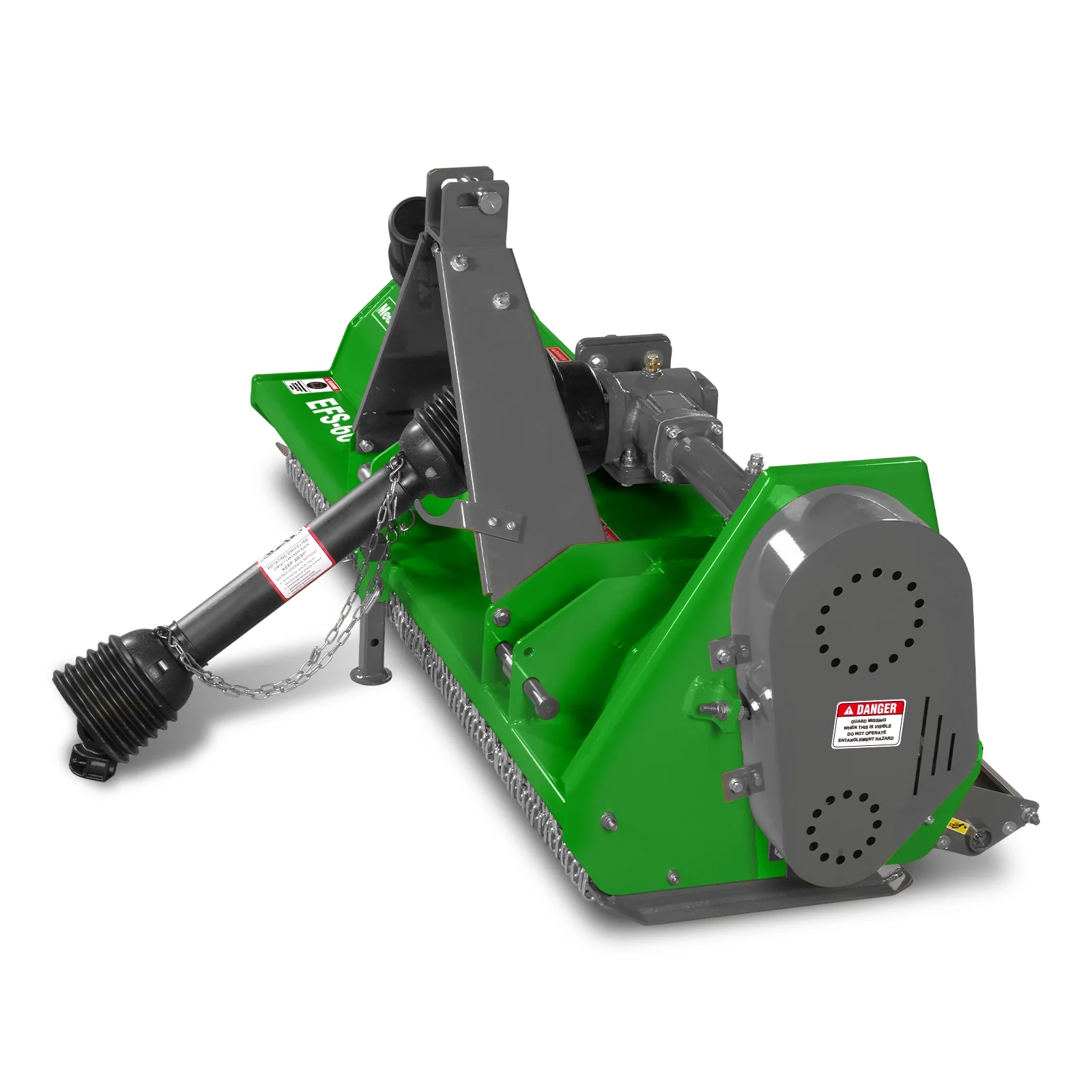

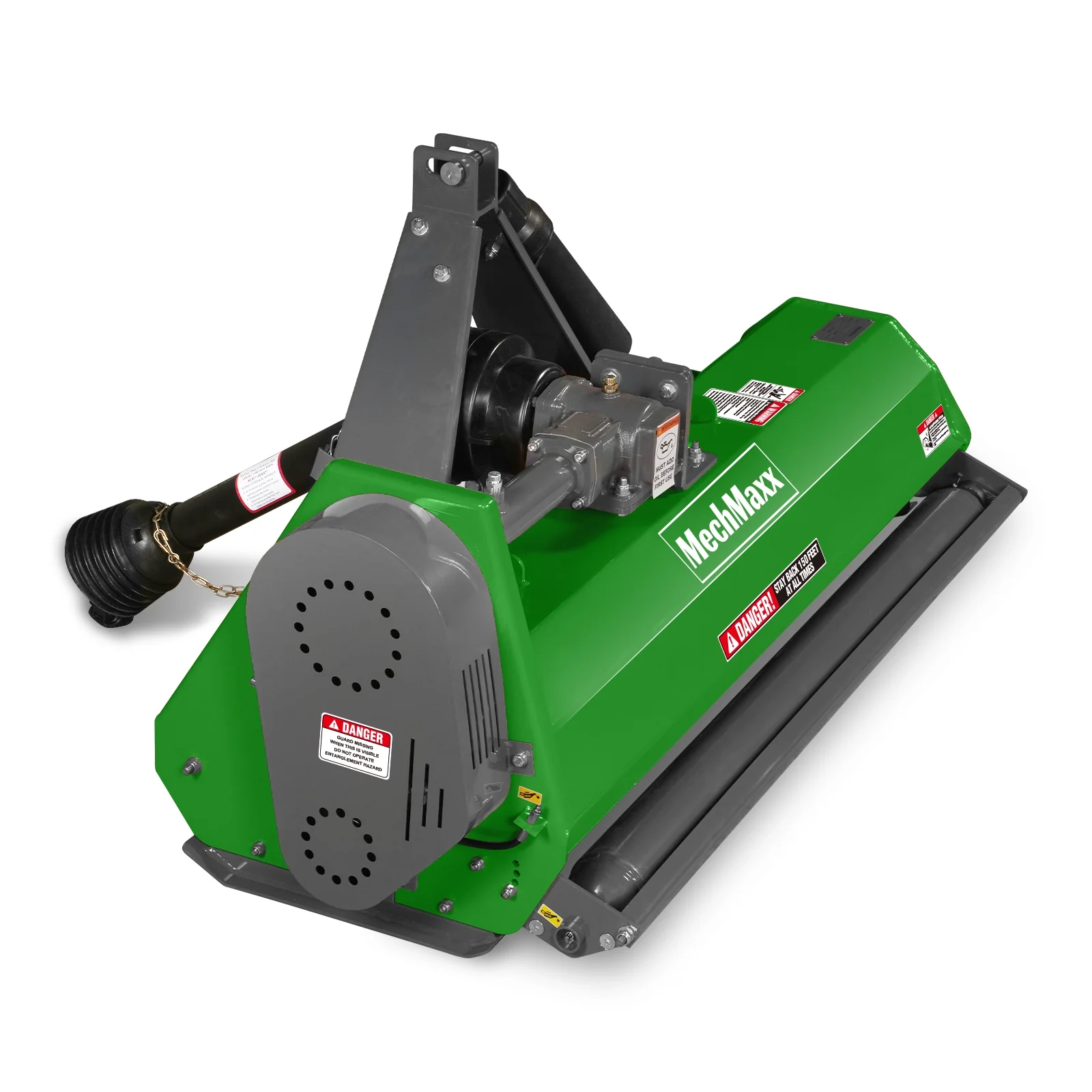

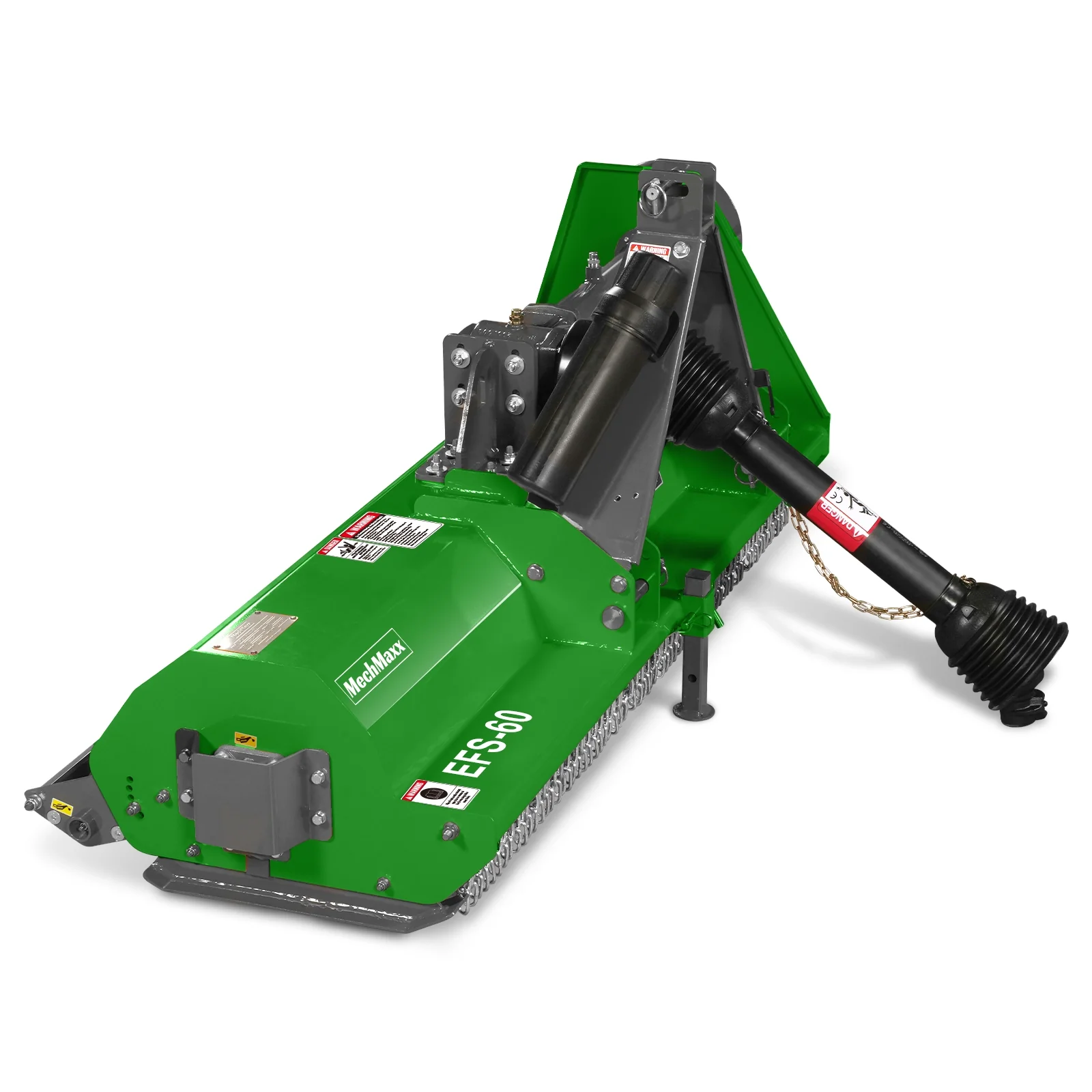

60'' Light-duty Flail Mower 3 Point 15-35HP , PTO Driven, EFS60
| Engine Power Required | 15-35HP | Drive Type | Belt drive |
| Working Width | 60in | Number of Belts | 3 |
| Overall Width | 65in | Belt Size | V Belt 13 X 1041 |
| Blade Ground Clearance | 0.6in-1.8inĀ | Drive Belt Tensioner | Yes |
| Max. Cutting Diameter | Depends On The Type Of Grass | Deck Thickness | 0.16in |
| Number Of Blades | 24 | Side Plate Thickness | 0.24in |
| Blade Type | Hammer | PTO Shaft RPM | 540 RPM |
| Size Of Blades | 3.5 x 3 x 1.6in | Driveline Shaft Length | T5-LF-31 with shear bolt; 31- 43in |
| Blade Weight | 0.8lbs | Spline End | 1.375inĀ Ā z6 |
| Blade ļ¼Tinesļ¼Material | Cast Steel | Tractor Mount | Reversible |
| Rotor Bearing | SKF bearing | Gearbox Oil Type | 85W-90 |
| Rotor Diameter | 3in | Dimensions (L x W x H)Ā | 65 x 30 x 28in |
| Rotor Swing Diameter | 11in | FinishĀ | Powder Coat PaintĀ Ā Galvanized Steel |
| Rotor Thickness | 0.3in | Warranty | 1 year |
| Rotor Shaft Speed | 2958 rpm | Ā Weight (N.W./G.W.) | 406/503 lbs |
| Blade Speed | 142 ft/s |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) Ā for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
